Elevator Tippers
Lifting and emptying the bowl used to be a laborious and time-consuming step. DIOSNA elevator tippers automate it and add a crucial component to the production flow, so you can turn your attention to other work steps.
The range extends from the space-saving table tipper to the high-performance system for industrial use. Despite the difference in size the machines share a compact design, high robustness and versatile usability. DIOSNA has been manufacturing in Osnabrück since 1885.
- Load
- 600 - 1,500 kg
- Tipping height
- 3.5 - 5 metres
- Use
- mobile or stationary
- Four models, from the table tipper to the industrial column
- Maximum load from 600 kg to 1,500 kg
- Tipping height from 3.5 metres to 5 metres
- Available as mobile or stationary
- It can work stand-alone or be integrated into a fully automatic system
Choosing the model
How much will it lift, and to what height will it discharge?

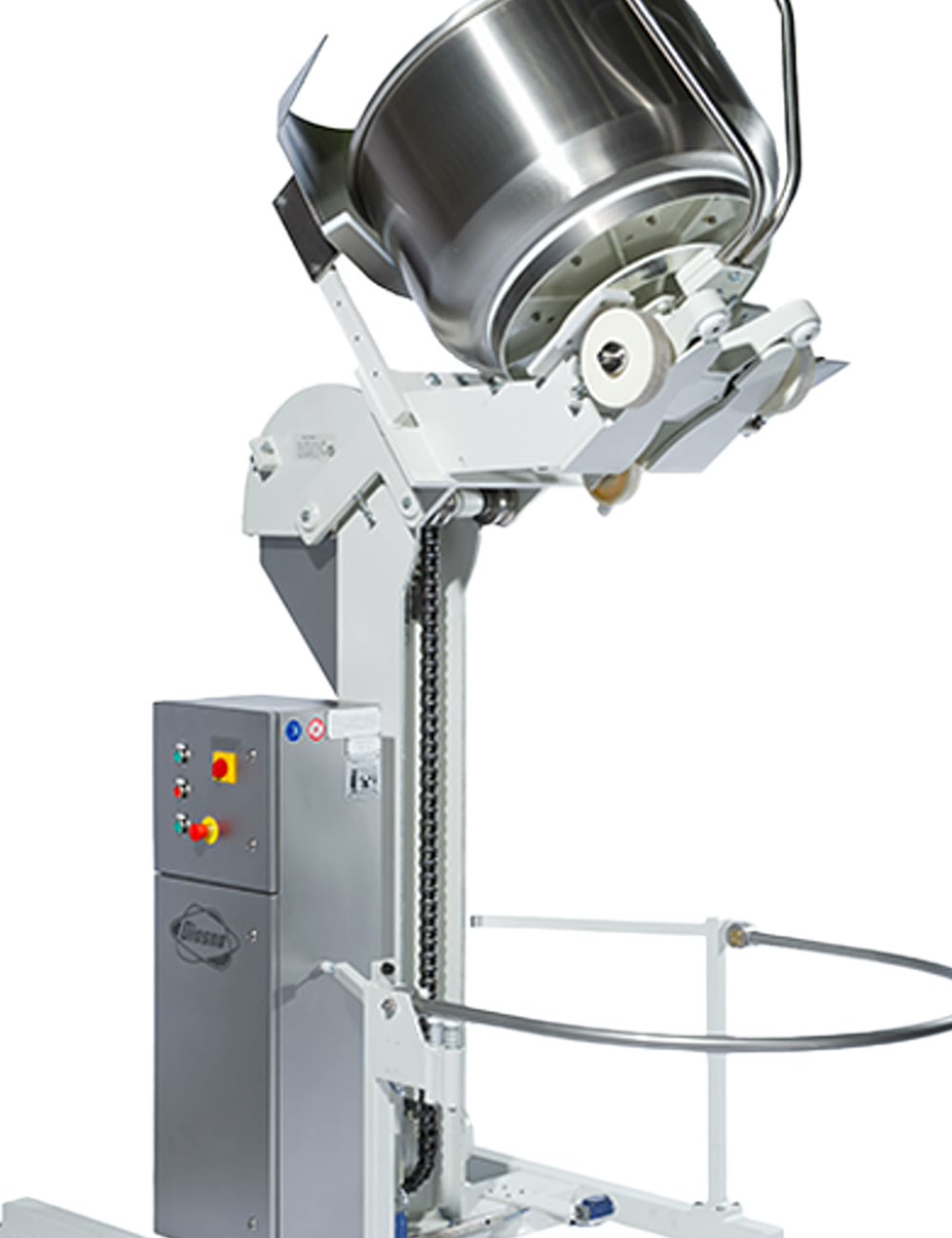

The mobile table tipper
Whether you use it on the floor or on the table, the HK 170 gives small businesses a well-suited unit. Alongside its compact design and easy handling, its low-maintenance operation ensures reliable use over long periods.
- Optionally mobile or stationary
- The lift has a safety catch to prevent it from falling
- It is locked in place with the help of a toothed rack
- The electrically secured safety bar adds to safe use
- The maximum load, tub and dough together, is 600 kg
- Maximum load
- 600 kg
- Use
- floor or table
- Setup
- mobile or stationary

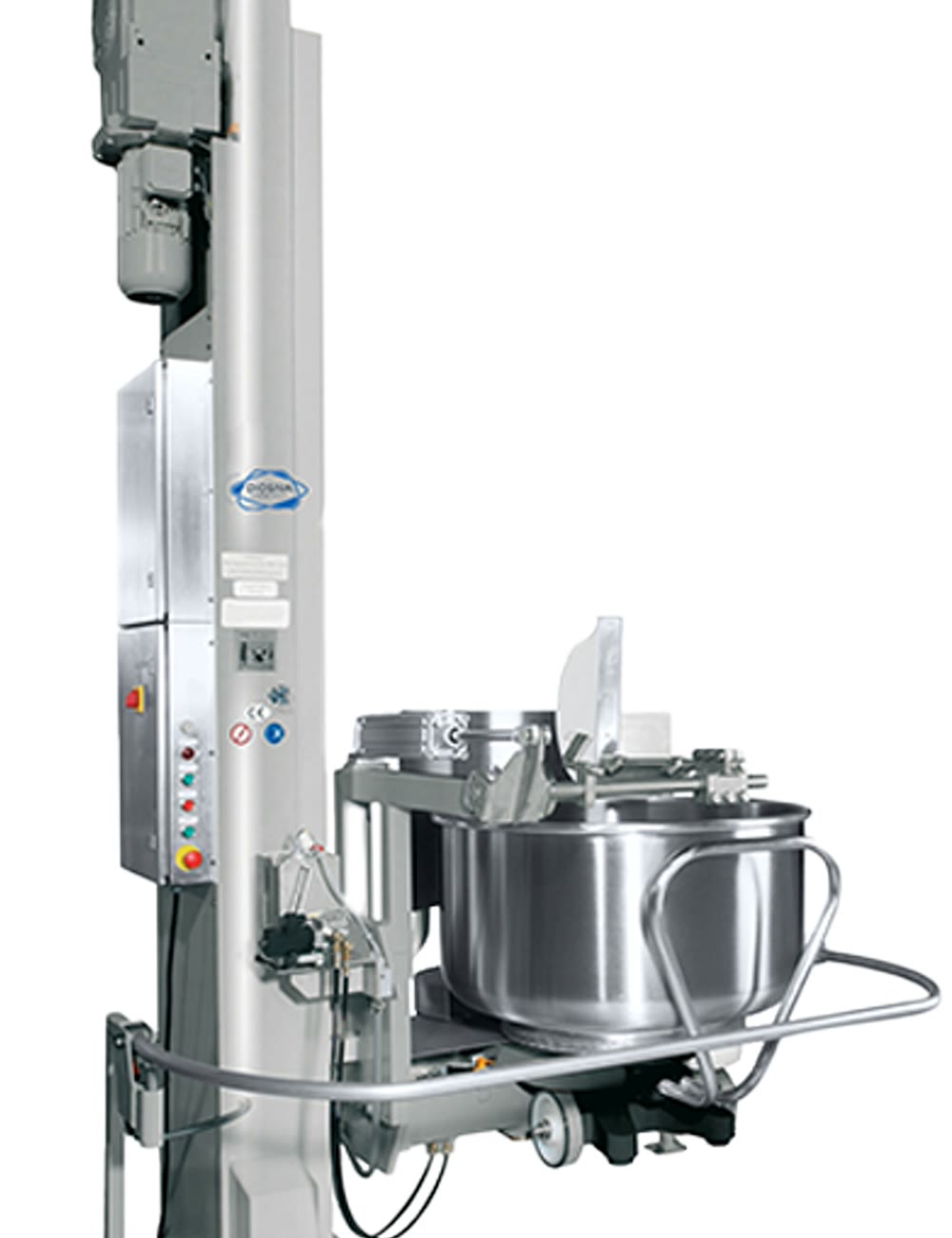

The flexible column series
The core component of the HKV 224 series is the flexible column, which works in both inclined and vertical positions. With numerous configuration variants to choose from, the system can be adapted individually to your operation.
- Available as a mobile or stationary system
- It can stand alone or be integrated into a fully automatic system
- It takes different vat receptacles
- Its overhead drive keeps the space requirement low
- Two roller chains give maximum safety
- Available in all-stainless finish or painted with stainless steel tongs
- The maximum dumping height of the 1,500 kg unit is 3.50 m
- Maximum load
- 1,500 kg
- Dumping height
- 3.50 m
- Column
- inclined and vertical

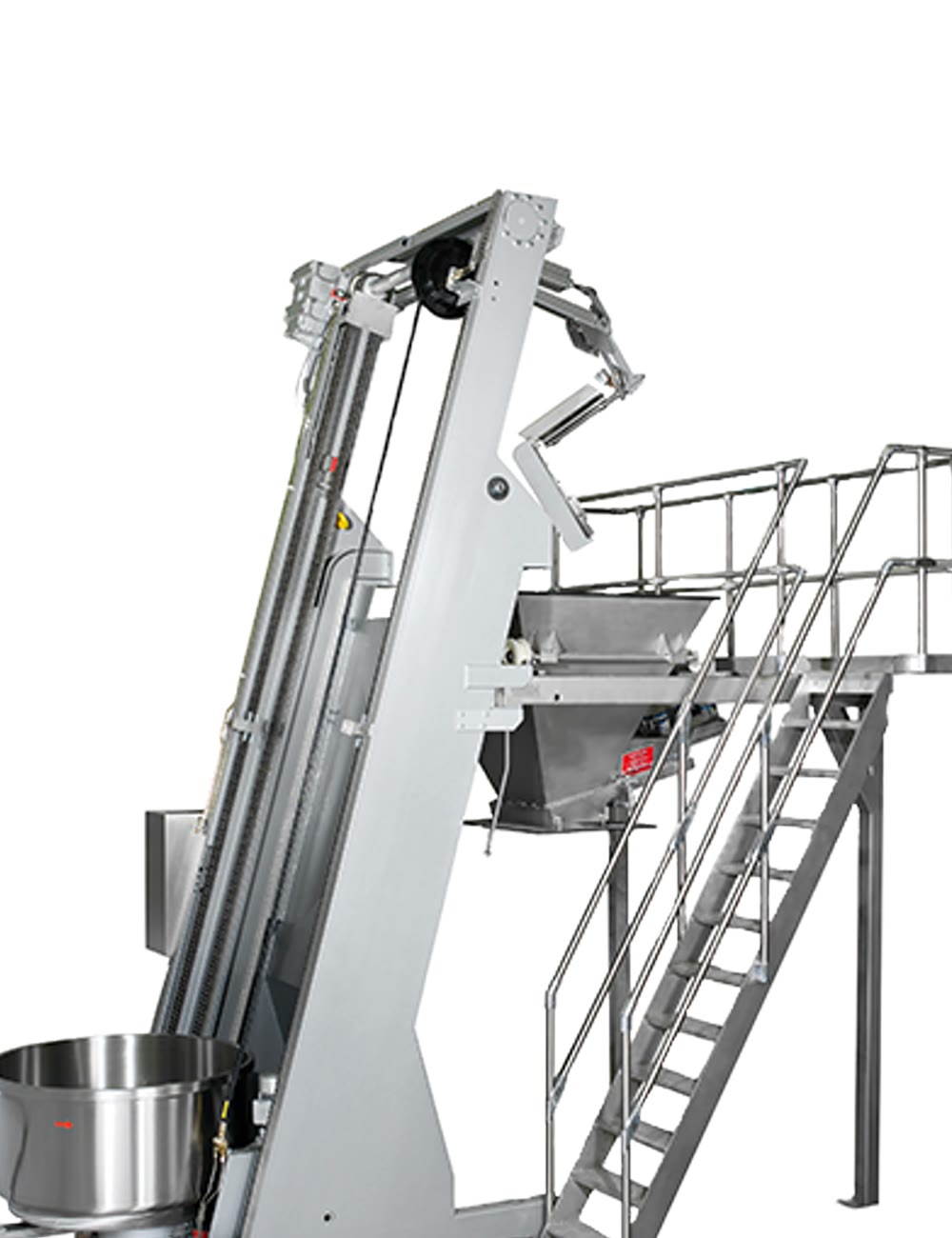

For large-scale operations
The HK 300, HK 600 and HK 1000 elevator tippers are designed for use in large-scale operations. Alongside normal use they are also available as cleaning elevator tippers.
- An inclined design for the best possible dough feeding
- A compactly built working platform in addition to a hopper
- Easy handling, available as a mobile or stationary unit
- The variants differ mainly in maximum load
- The HK 300 holds 600 kg
- HK 300
- 600 kg
- Design
- inclined, with hopper
- Extra version
- cleaning tipper

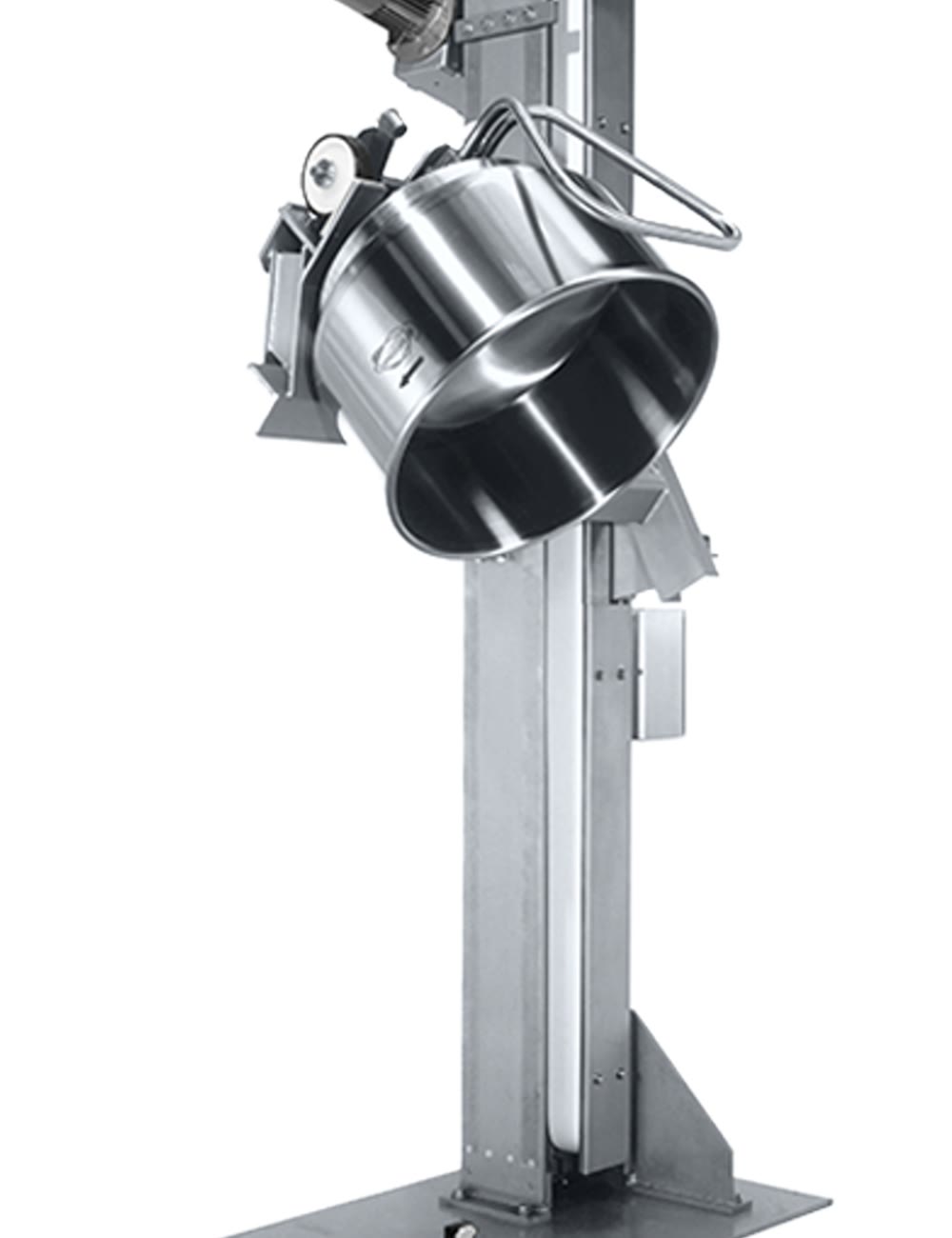

For industrial use
The HK 1200 stands out above all for its space-saving design. Its small footprint and vertical column leave plenty of room for additional installations.
- The 2-gear shift on the motor optimises lifting
- Durable, robust and reliable
- Maximum load 1,200 kg
- Maximum tipping height five metres
- With 16 tippings per hour it keeps a continuous production flow
- Maximum load
- 1,200 kg
- Tipping height
- 5 metres
- Tippings
- 16 per hour

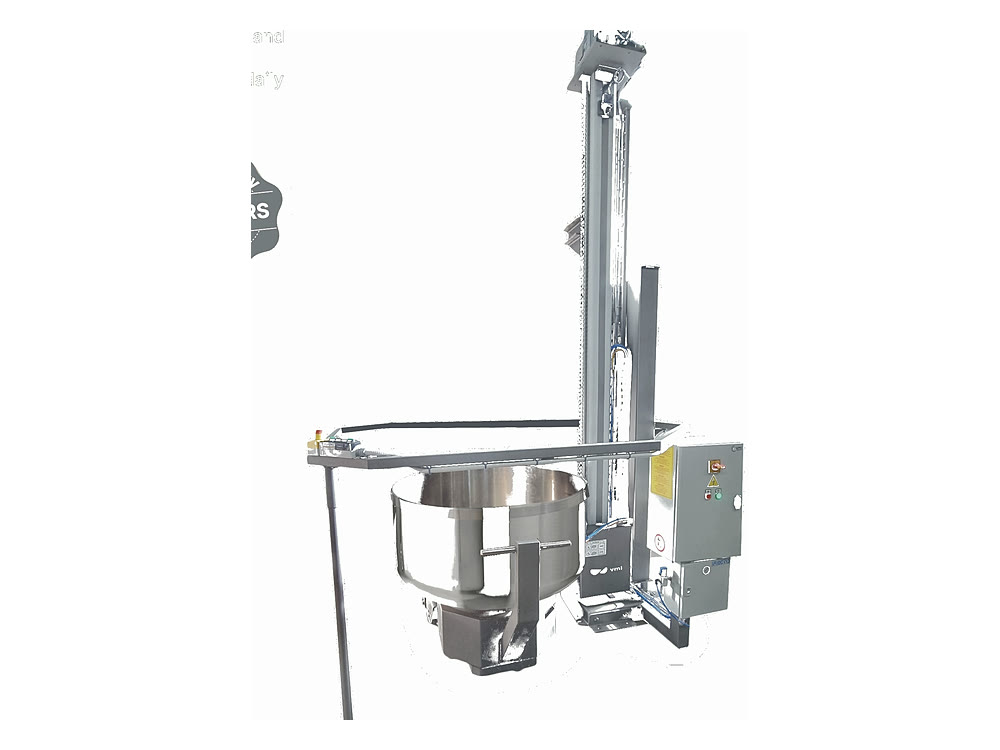

For planetary mixer and kneader bowls
It lifts and tips the bowl under power. With hand lifting gone, the daily work becomes both safer and faster.
- Motorised lifting and lowering of the bowl
- Several heights and tilting options
- Three models with bowl locking to suit your equipment
- A painted frame and a stainless steel mast
- An electrical screw lift
- Motorised tipping
- Mounted on wheels
- A compatible fork for each mixer model and its bowl
- Enhanced safety
- A robust and hygienic design
- Power 0.87 to 1.1 kW
- Function
- motorised lifting and tipping
- Models
- three, with bowl locking
- Lift
- electrical screw
- Power
- 0.87 - 1.1 kW
Tell us your bowl weight, your dough quantity and your discharge height, and we will pick the model for it.
