Cartoning and Case Packing Machines
Collecting packed products into cases is the first step of the end of line. This group opens the flat carton, loads the product from the side or from the top and closes the case; it also covers tray and wraparound cases and lid application.
GEA loads continuously from the side and reaches 100 cases a minute. DOM loads from the top with pick and place, for fragile products such as frozen bread and breadsticks. SKY erects and closes the case vertically, DRON makes tray and wraparound cases, LIDON applies lids, ICE prepares cluster packs. RSC and HSC American cases.
- Side loading
- 35 / 80-100 cases per minute
- Top loading
- 8 / 13 / 16 cases per minute
- Case
- 60x40x20 - 600x400x400 mm
- Case type
- RSC, HSC, pre-glued
- Power
- 12 kW (GEA)
- Side loading: intermittent 35, continuous 80-100 cases a minute
- Top loading: 8, 13 or 16 cases a minute
- Cases from 60 x 40 x 20 mm up to 600 x 400 x 400 mm
- RSC and HSC American pre-glued cases
- Flat cartons, cases, trays and blanks
- Tray, wraparound and cluster packs
- Automatic lid application
- Fast format change, visible mechanics
Eight machines
The loading direction protects the product: sturdy from the side, fragile from the top.

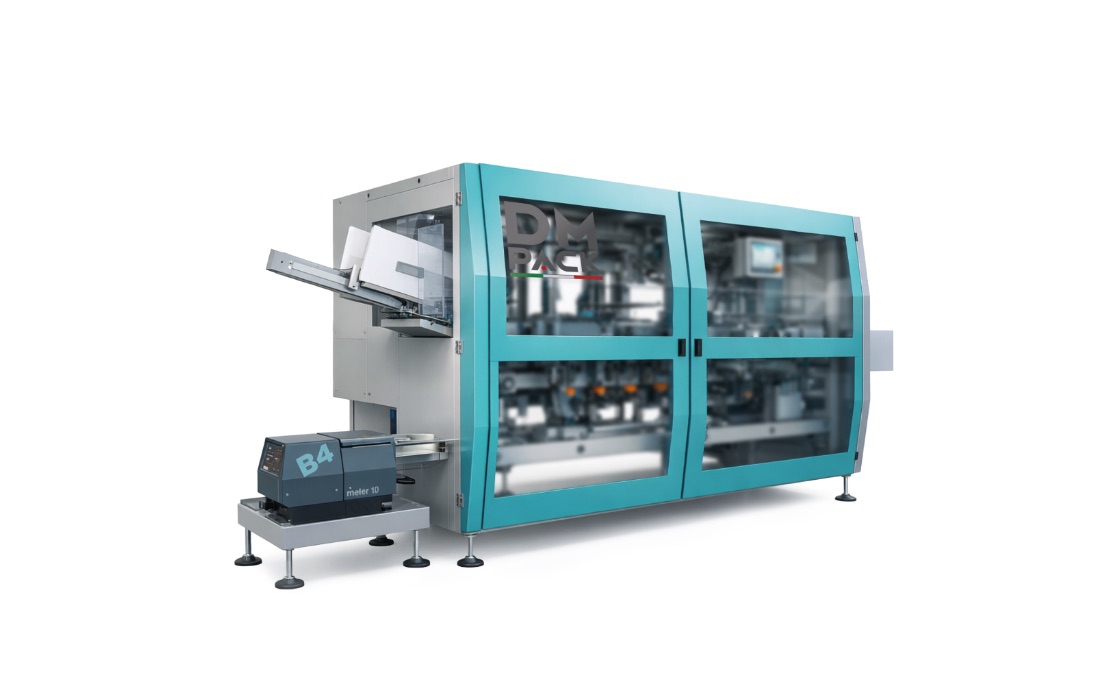

Automatic case packer, side loading
Pushes single products or multipacks into pre-glued cases from the side. Single-pusher intermittent version 35, multi-pusher continuous version 80-100 cases a minute. Semi or fully automatic.
- Intermittent 35 cases a minute
- Continuous 80-100 cases a minute
- Minimum case 60x40x20 mm (intermittent), 160x40x40 mm (continuous)
- Maximum case 400x400x100 mm (intermittent), 300x300x100 mm (continuous)
- Optional height 300 mm
- Semi-automatic: operator loads
- Fully automatic: collating and bucket conveyor
- Speed
- 35 / 80-100 cases per minute
- Case
- 60x40x20 - 400x400x100 mm
- Power
- 12 kW
- Air
- 6 bar
- Weight
- 1500 kg

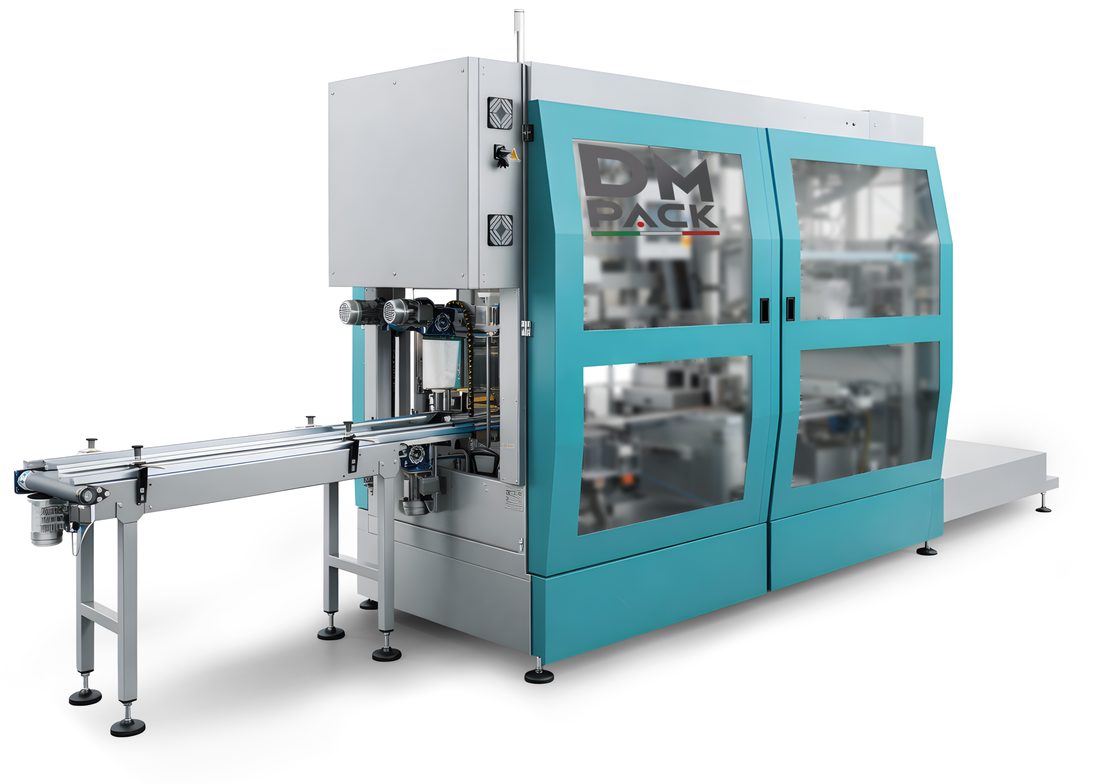

Horizontal case packer, side loading
Side loading in a horizontal body. The same principle as the GEA, arranged for a horizontal product flow.
- Side loading
- Horizontal product flow
- Pre-glued cases
- In line
- Loading
- side
- Flow
- horizontal
- Case
- pre-glued

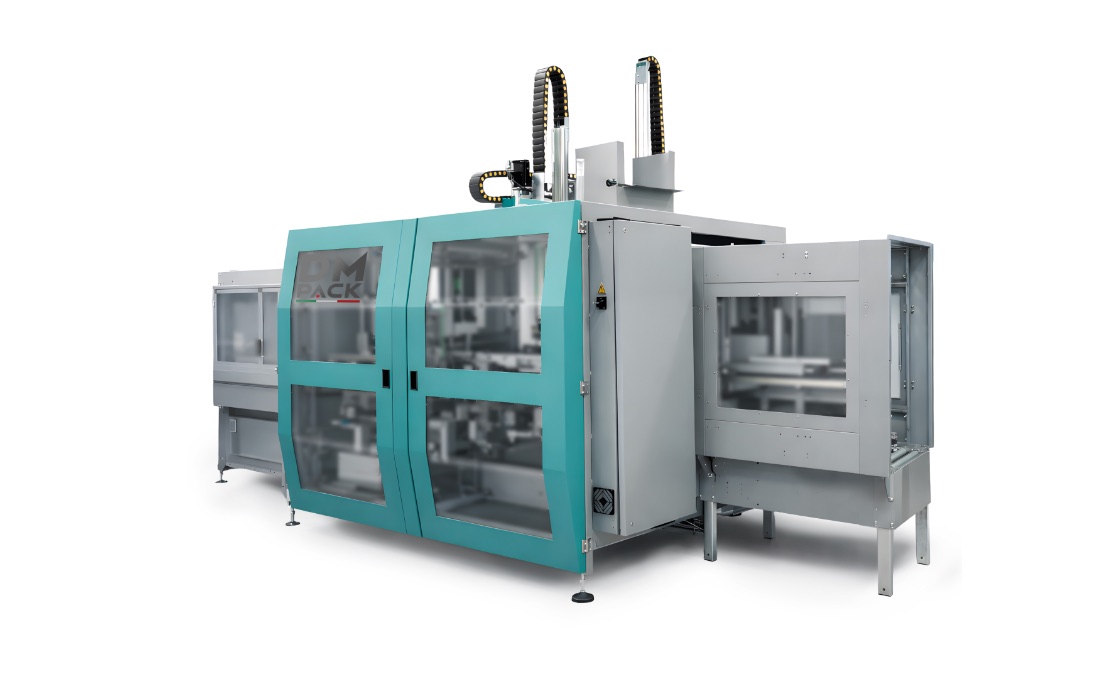

Top load case packer
Places the product into the case from the top with pick and place. For fragile products such as frozen bread and breadsticks; a complete line with case erecting, bag-in-box and closing.
- 8, 13 or 16 cases a minute
- Single pick and place: 15 cycles a minute
- With gripper: 10-12 cycles a minute
- Drop box version: 12 cases a minute
- Minimum case 150x150x150 mm
- Maximum case 600x400x400 mm
- Single or double station
- Robotic pick and place option
- Speed
- 8 / 13 / 16 cases per minute
- Loading
- top, pick and place
- Case
- 150x150x150 - 600x400x400 mm
- Products
- fragile, frozen

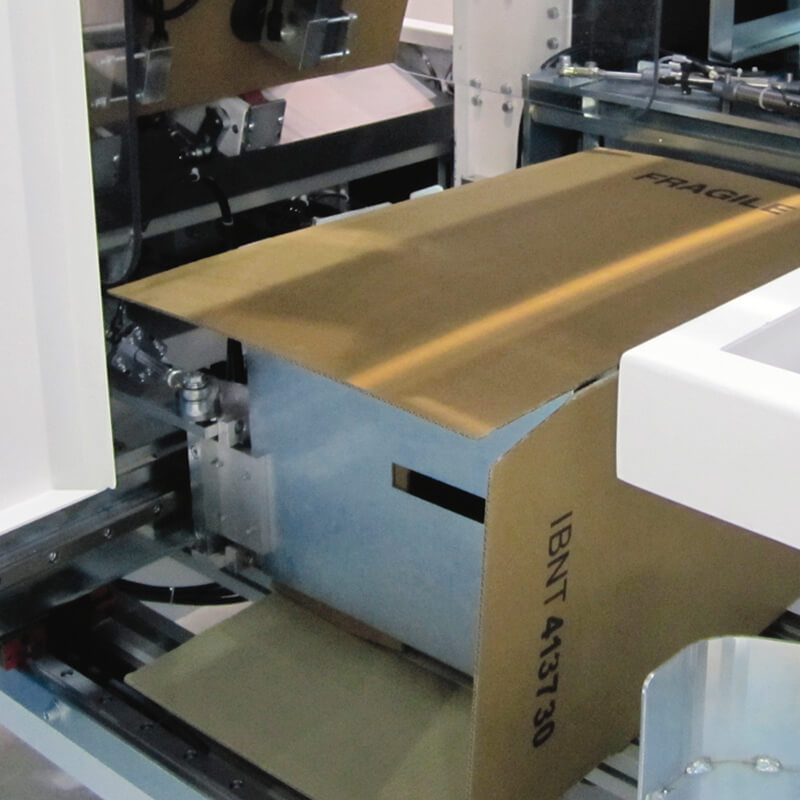

Cartoning machines
Cartoners for RSC American cases and horizontal cartoners for pre-glued cases. Puts the product into its own carton.
- RSC American cases
- Horizontal body for pre-glued cases
- Single-product carton
- In line
- Case
- RSC, pre-glued
- Body
- horizontal
- Pack
- single

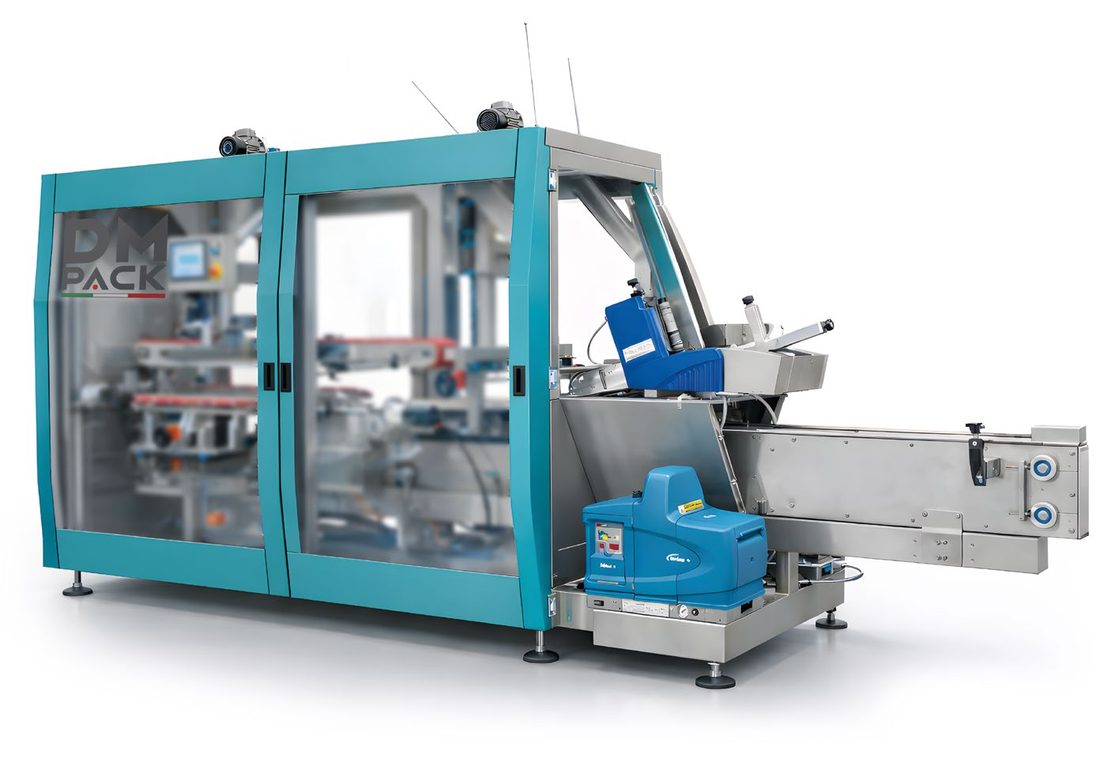

Cluster pack and carton sleeve
Wraps the product group in a carton sleeve: the cluster pack for the shelf. Not a case, an open-ended carton band.
- Carton sleeve
- Cluster pack
- Shelf presentation
- In line
- Pack
- cluster
- Material
- carton sleeve
- Form
- open-ended

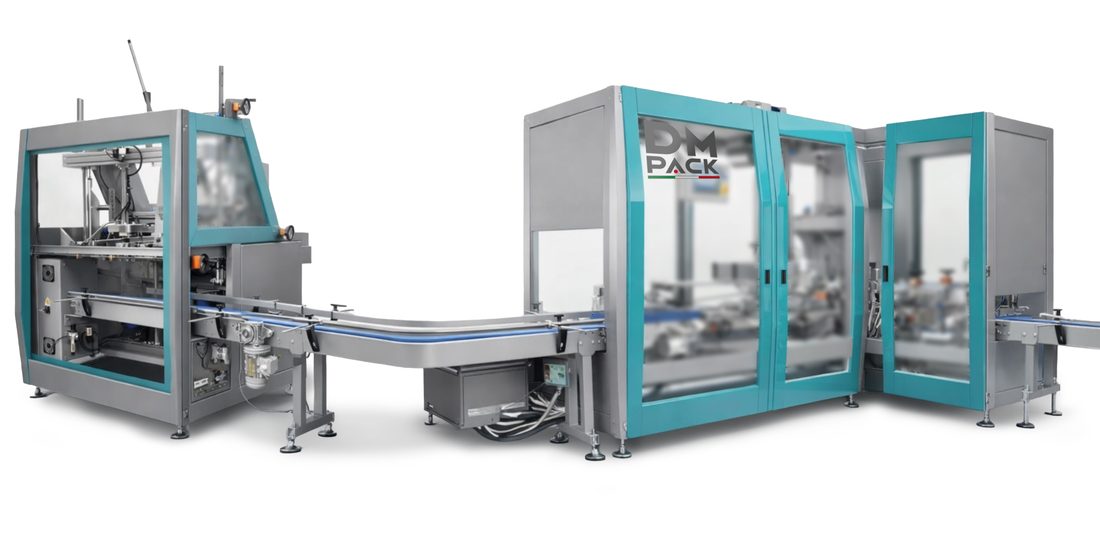

Vertical case forming and closing
Erects the flat carton vertically and closes it once filled. Top loading; runs before and after the case packer.
- Case erecting and closing
- Vertical body
- For top loading
- Flat cartons and blanks
- Function
- erecting and closing
- Body
- vertical
- Carton
- flat, blank

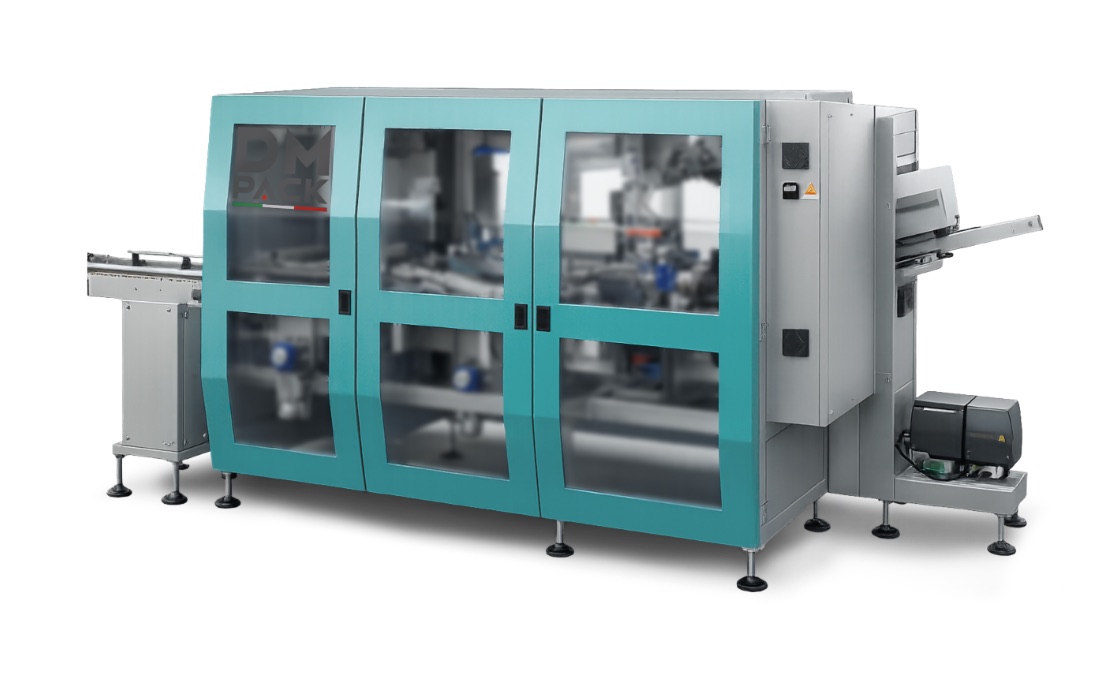

Horizontal tray packer and wraparound
Forms a tray or a wraparound case from a flat blank and wraps the product. For groups of bottles, jars, cartons and trayed products.
- Tray forming
- Wraparound case
- Flat blank
- Horizontal body
- In line
- Case
- tray, wraparound
- Material
- flat blank
- Body
- horizontal

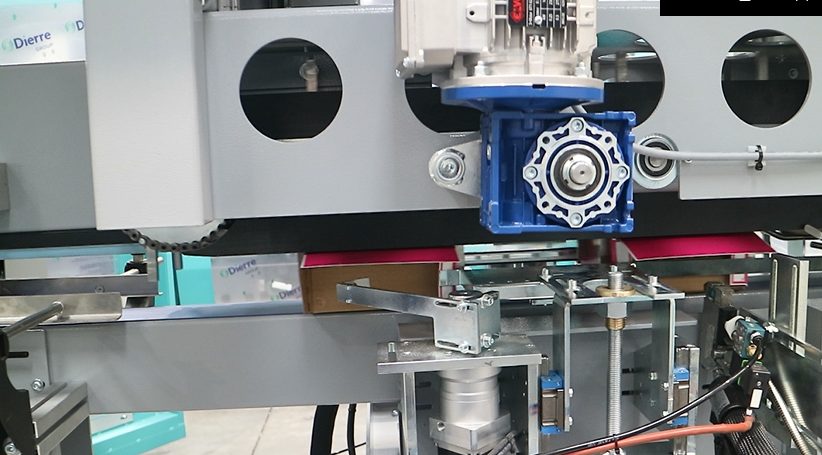

Automatic lid applicator
Applies the lid to trays and cases automatically. The last step of the tray and wraparound line.
- Automatic lid application
- Trays and cases
- In line with the DRON
- In line
- Function
- lid application
- Case
- tray, case
- Operation
- in line
Tell us the product and case sizes and the cases per minute you need, and we will pick the loading direction and the machine.
