Industrial Depositors
The same volumetric dosing unit goes onto whichever frame the job needs. Height is adjusted by hand, pneumatically or electrically, and there is also a heavy duty frame for working over a line, a low frame for handgun operation, and a multi-piston body for working over a conveyor.
All of them are stainless steel and none needs electricity. The deposit range runs from 5 ml to 1,340 ml, at up to 120 deposits a minute. Hoppers are 18, 25 and 60 litres, and 220 litres on the Bellow body.
- Deposit range
- 5 - 1,340 ml
- Speed
- up to 120 deposits/min
- Hopper
- 18 - 220 l
- Air
- 29 - 250 l/min, 7 Bar
- A deposit range of 5 ml to 1,340 ml
- Up to 120 deposits a minute
- Hoppers of 18, 25 and 60 litres, and 220 litres on the Bellow body
- Air from 29 to 250 l/min at 7 Bar, for 30 deposits a minute
- Pneumatic operation that needs no electricity
- Cake batter, muffins, jam, jelly, fruit filling, cream, mousse, meringue, ice-cream, yoghurt, soup, sauce, mashed potatoes, minced meat and salad
- Injection of eclairs, Berliners and profiteroles
- Entirely stainless steel
Seven bodies
The dosing unit is the same. What changes is the frame that carries it and the nozzle arrangement.

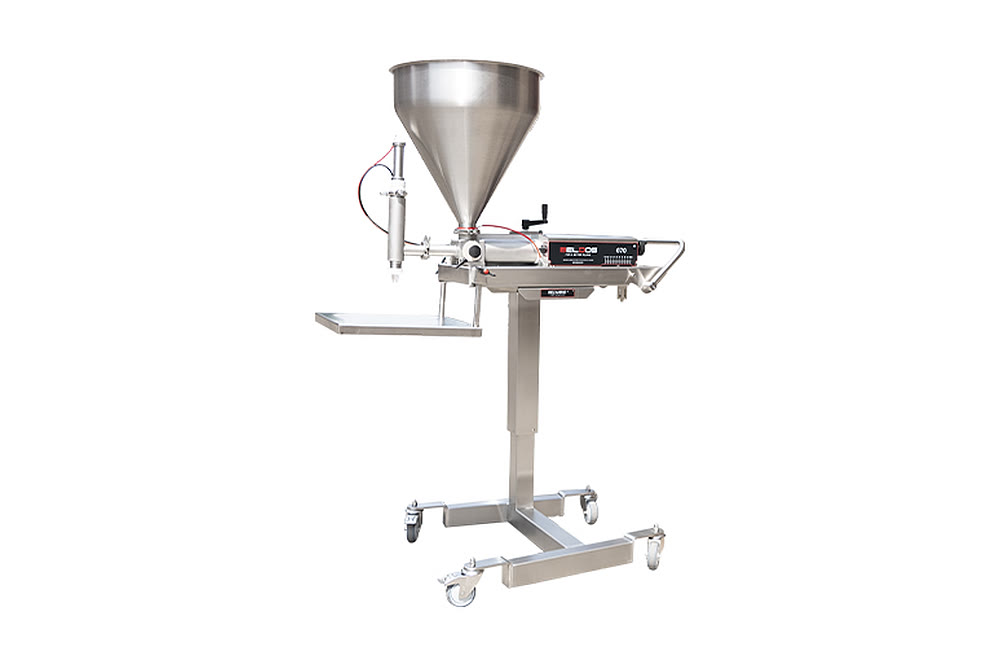

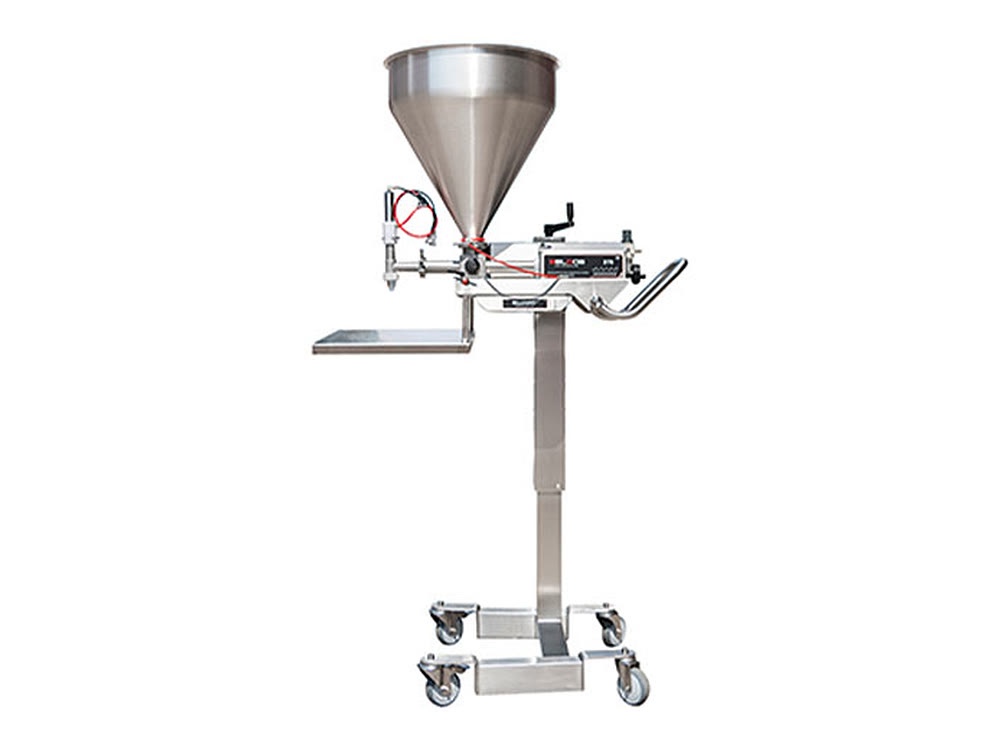

Manually adjustable in height
The mobile frame is raised and lowered by hand. This is the base body in the range, and it comes in three deposit ranges.
- A mobile frame adjusted in height by hand
- Three deposit ranges: Belvario 275, 670 and 1340
- Air 29, 121 or 219 l/min at 30 deposits/min, 7 Bar
- Up to 120 deposits a minute
- Hoppers of 18, 25 and 60 litres
- Depositing, injection and decoration
- Deposit
- 5-275, 5-670 or 5-1,340 ml
- Speed
- up to 120 deposits/min
- Hopper
- 18, 25, 60 l
- Height
- manually adjustable

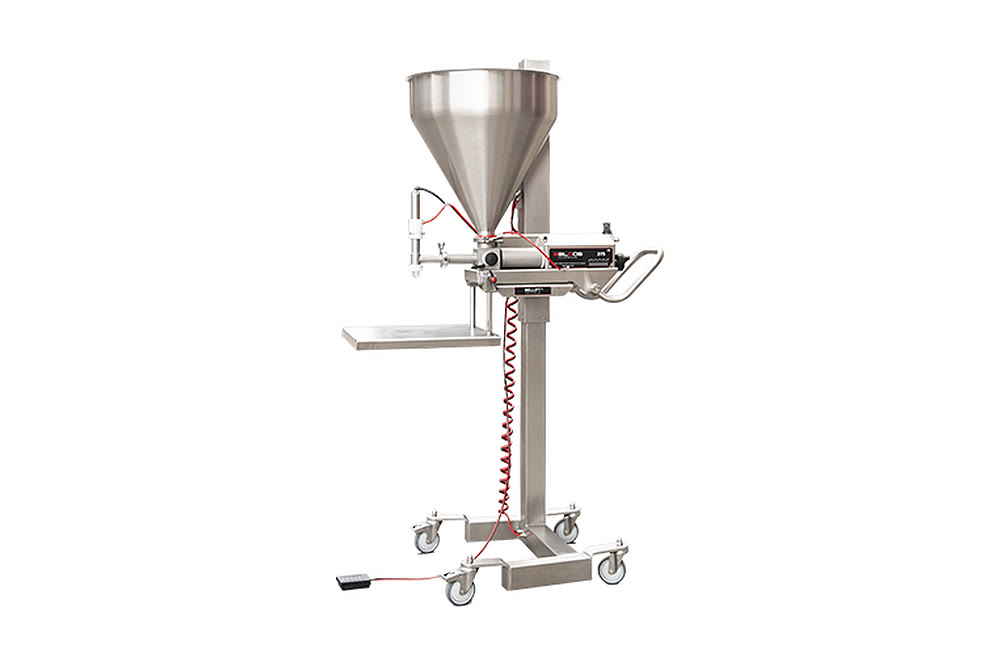

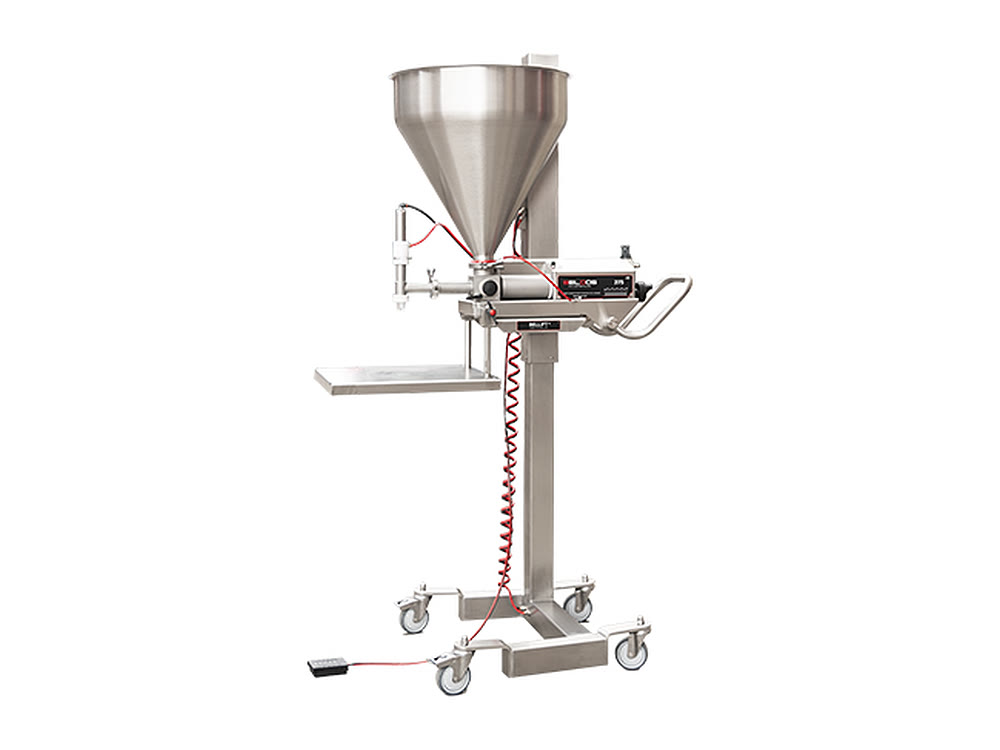

Pneumatically adjustable in height
The frame goes up and down pneumatically. In the lowest position the hopper is easy to fill and to clean.
- A mobile frame adjusted in height pneumatically
- The hopper can be filled and cleaned in the lowest position
- Three deposit ranges: Bellift 275, 670 and 1340
- Air 29, 121 or 219 l/min at 30 deposits/min, 7 Bar
- Up to 120 deposits a minute
- Hoppers of 18, 25 and 60 litres
- Deposit
- 5-275, 5-670 or 5-1,340 ml
- Speed
- up to 120 deposits/min
- Hopper
- 18, 25, 60 l
- Height
- pneumatic

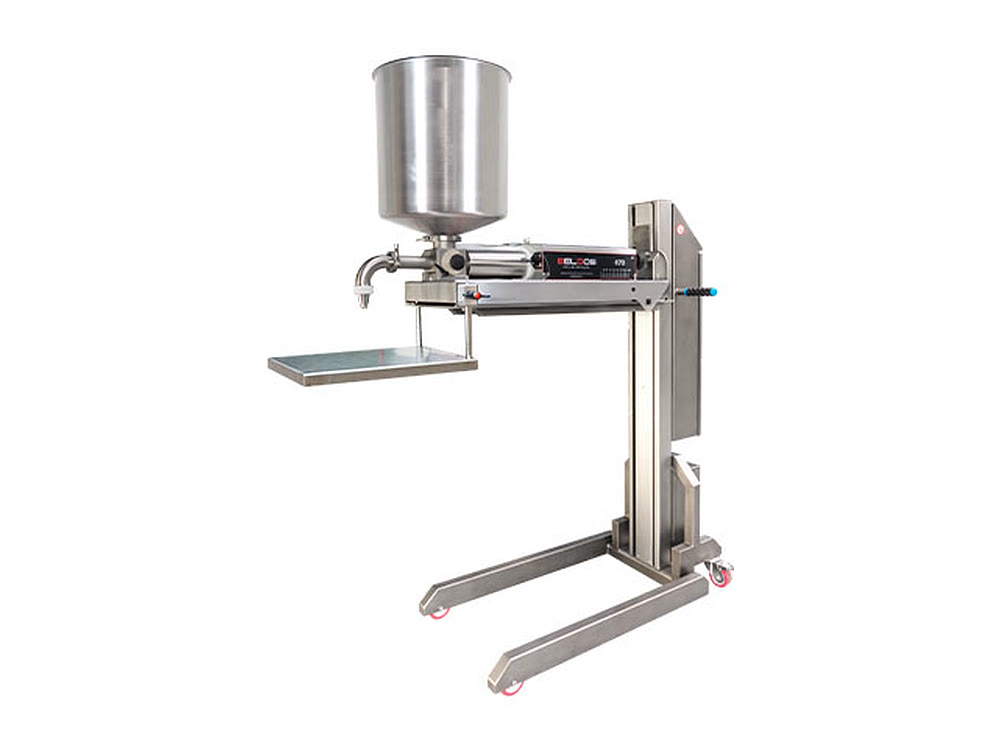

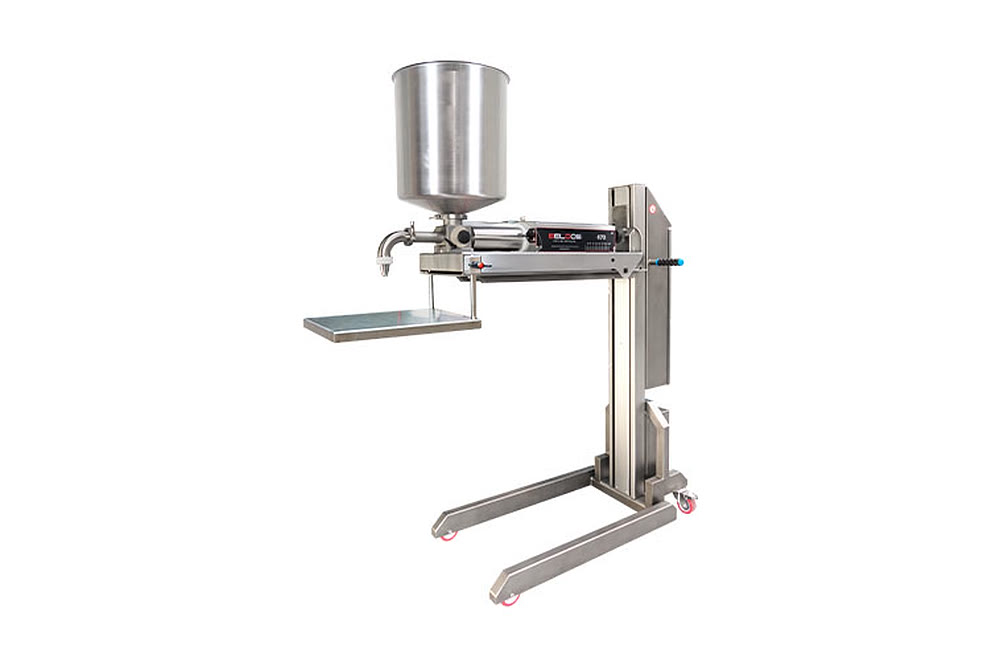

Electrically adjustable in height
Height is adjusted electrically. A battery moves the frame where there is no compressed air line to hand.
- A mobile frame adjusted in height electrically
- The hopper can be filled and cleaned in the lowest position
- Air 121 l/min at 30 deposits/min, 7 Bar
- Up to 120 deposits a minute
- A deposit range of 5-670 ml
- Hoppers of 18, 25 and 60 litres
- Deposit
- 5 - 670 ml
- Speed
- up to 120 deposits/min
- Air
- 121 l/min, 7 Bar
- Height
- electric

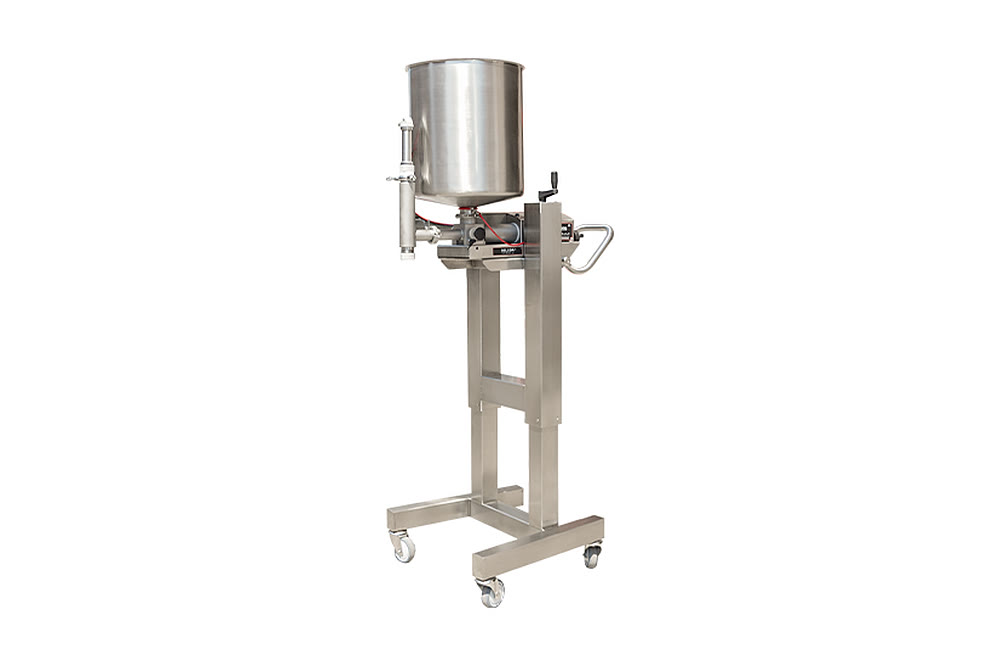

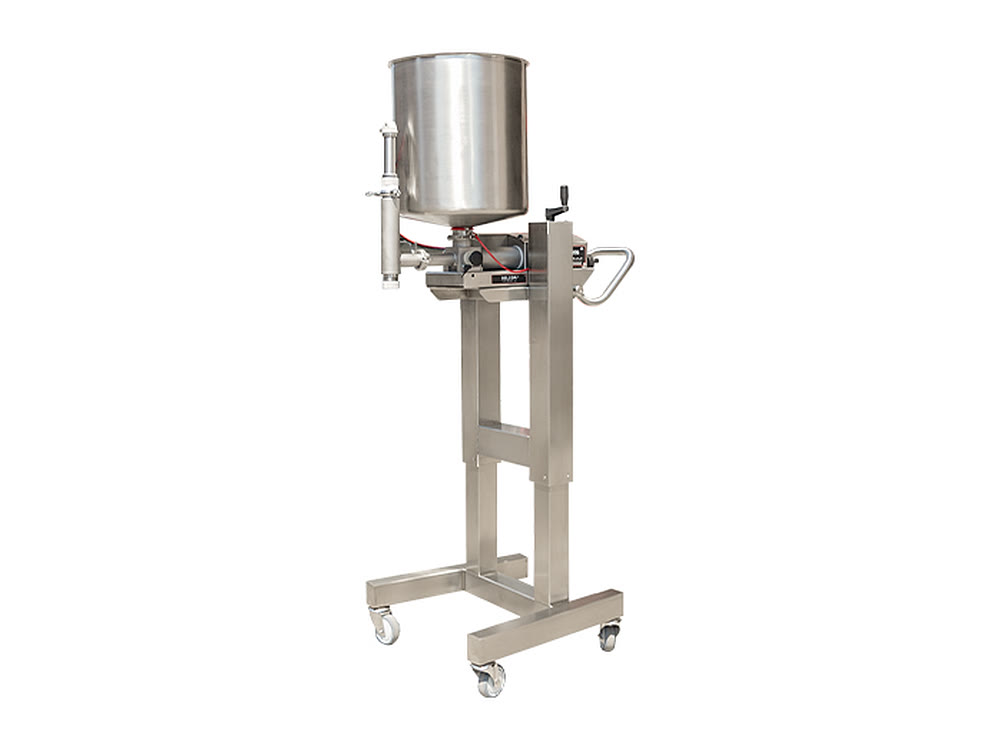

Designed for production lines
A heavy duty frame built for continuous work over a line. Height is set by hand and the body stands over the line.
- A body designed for production lines
- A heavy duty frame adjusted in height by hand
- Three deposit ranges: Belcon 275, 670 and 1340
- Air 29, 121 or 219 l/min at 30 deposits/min, 7 Bar
- Up to 120 deposits a minute
- Hoppers of 18, 25 and 60 litres
- Deposit
- 5-275, 5-670 or 5-1,340 ml
- Speed
- up to 120 deposits/min
- Hopper
- 18, 25, 60 l
- Frame
- heavy duty, over the line

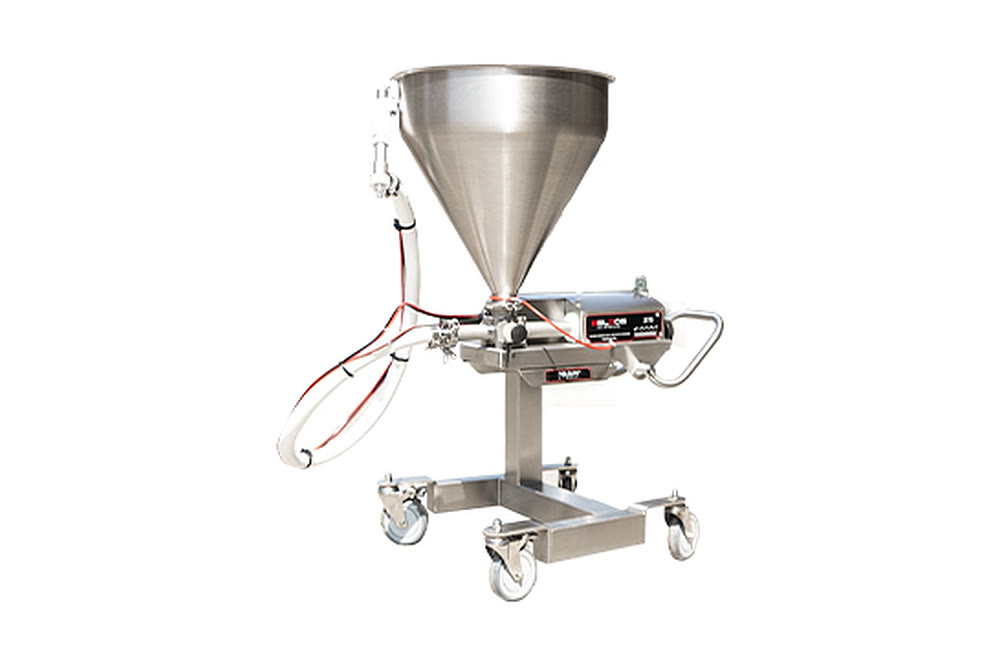

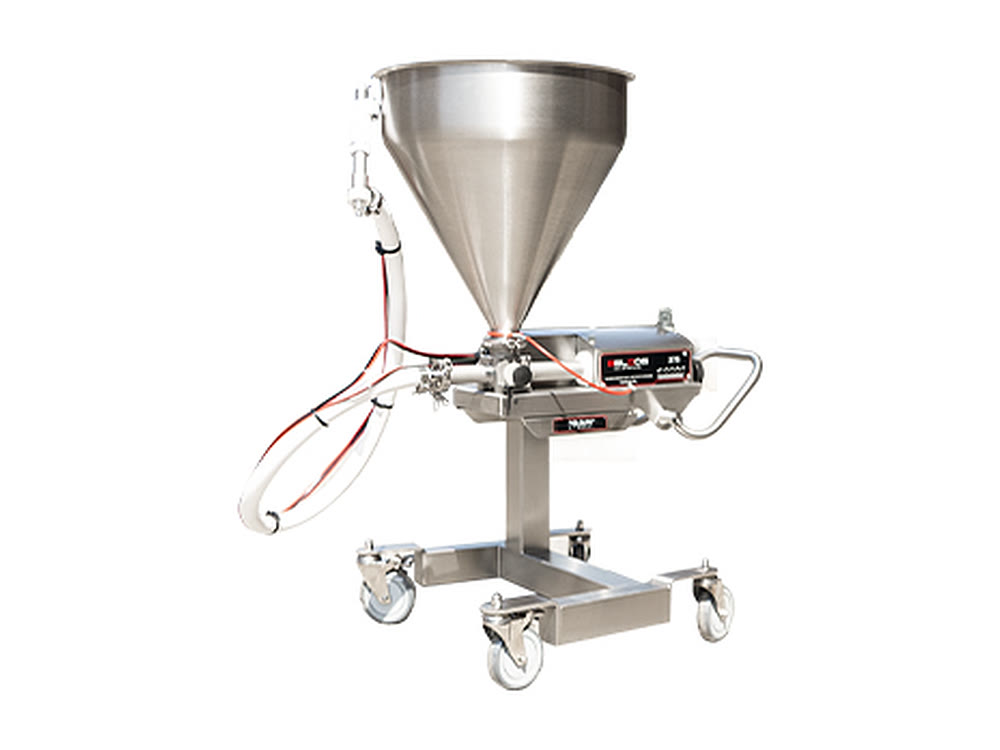

Handgun operation
A body set up to work with the handgun nozzle. The frame is low and fixed, so the hopper fills easily. Dosing, injection, layering and decoration by hand.
- Works with the handgun nozzle and optional attachments
- A low frame that is fixed in height, so the hopper fills easily
- Two deposit ranges: Belgun 275 and 670
- Air 29 or 121 l/min at 30 deposits/min, 7 Bar
- Up to 120 deposits a minute
- Hoppers of 18, 25 and 60 litres
- Deposit
- 5-275 or 5-670 ml
- Speed
- up to 120 deposits/min
- Hopper
- 18, 25, 60 l
- Operation
- handgun nozzle

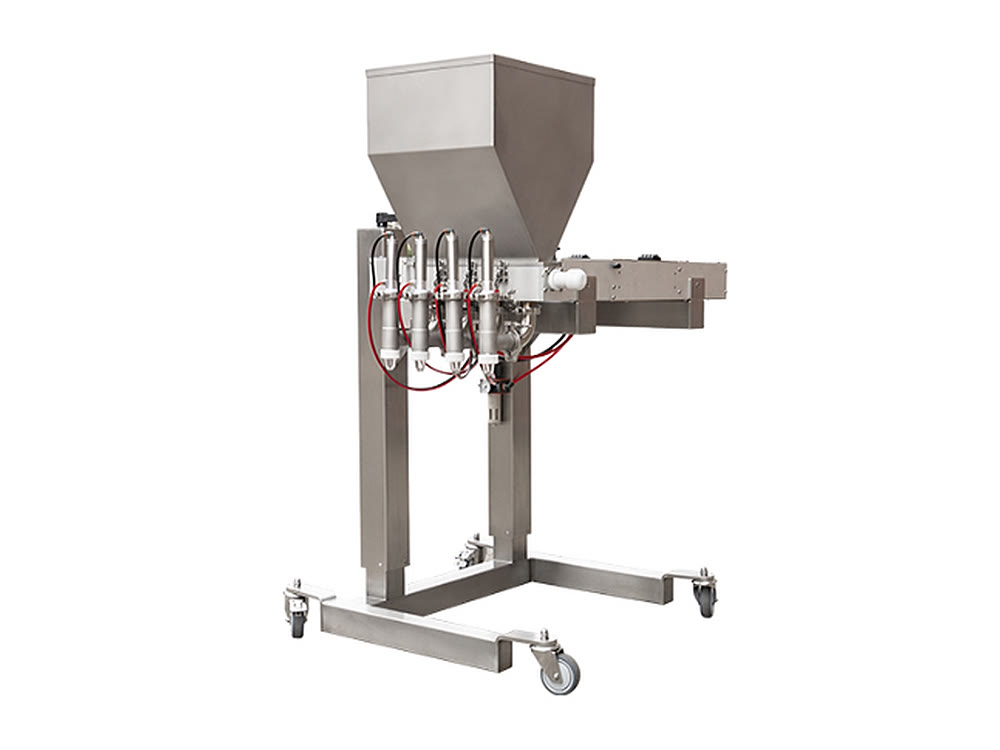

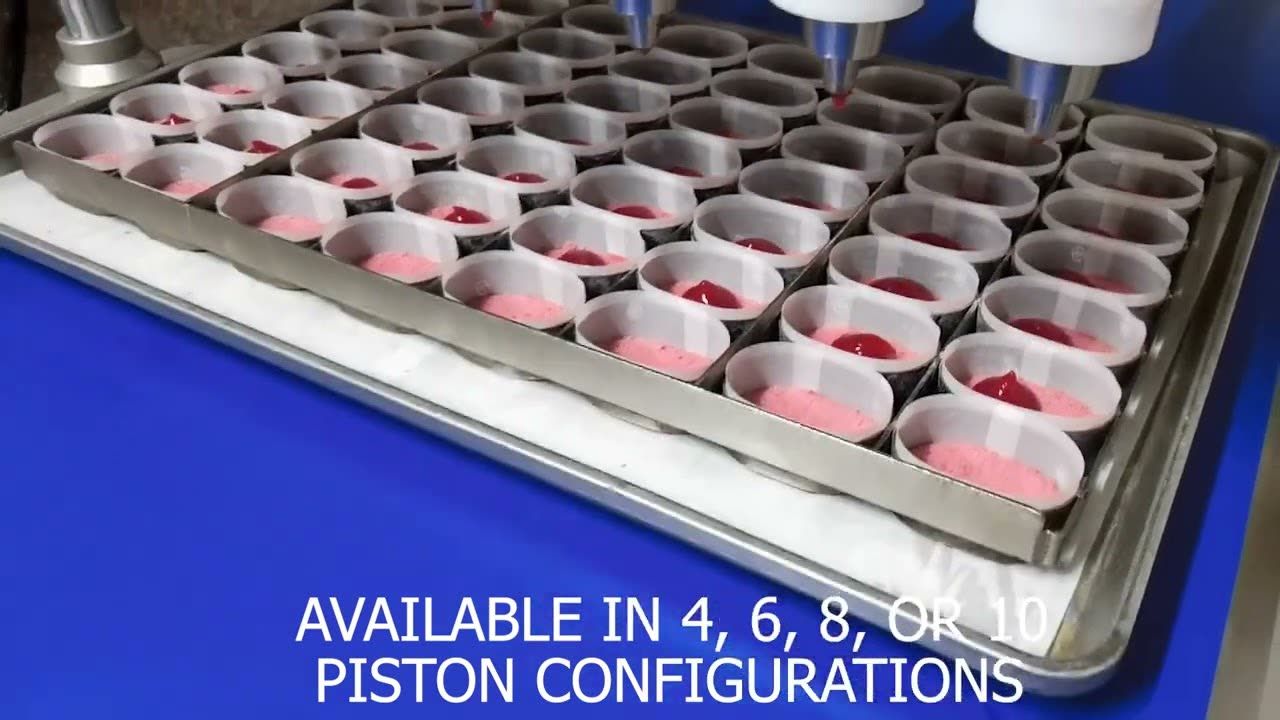

Multi piston, over a conveyor
A multi-piston body that works over a conveyor or a working table. It fills cake and muffin pans continuously and automatically, with four, six or eight nozzles.
- Four, six or eight nozzles
- Continuous automatic pan filling over a conveyor or a table
- A mobile frame adjusted in height by hand
- Air 250 l/min at 30 deposits/min, 7 Bar
- Up to 80 deposits a minute per nozzle
- A deposit range of 5-670 ml per nozzle
- Hoppers of 50, 70 and 90 litres
- Nozzles
- 4, 6 or 8
- Deposit
- 5 - 670 ml per nozzle
- Speed
- up to 80 deposits/min per nozzle
- Hopper
- 50, 70, 90 l

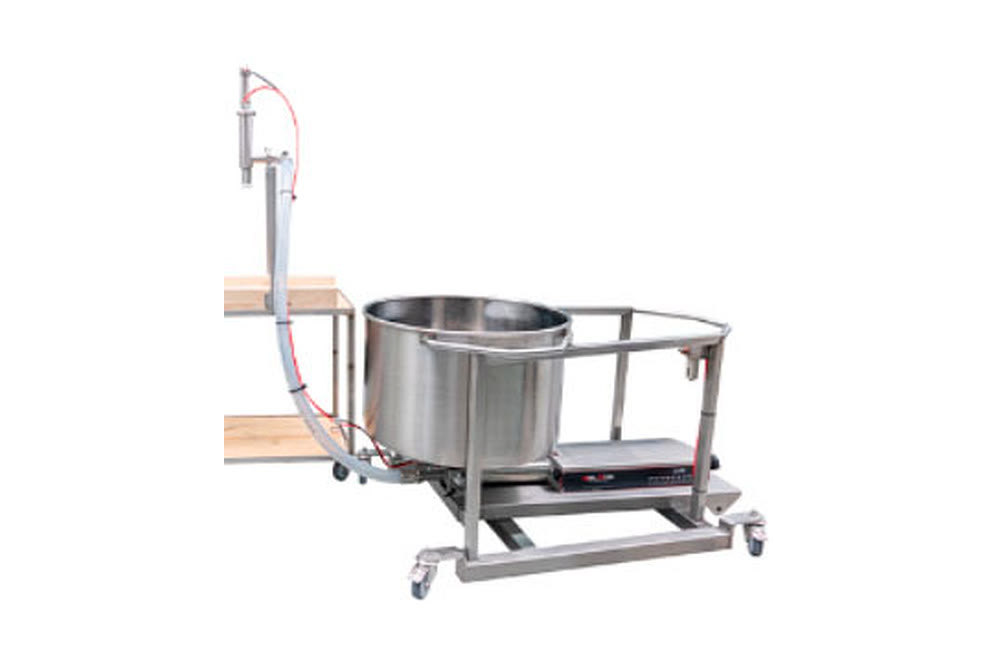

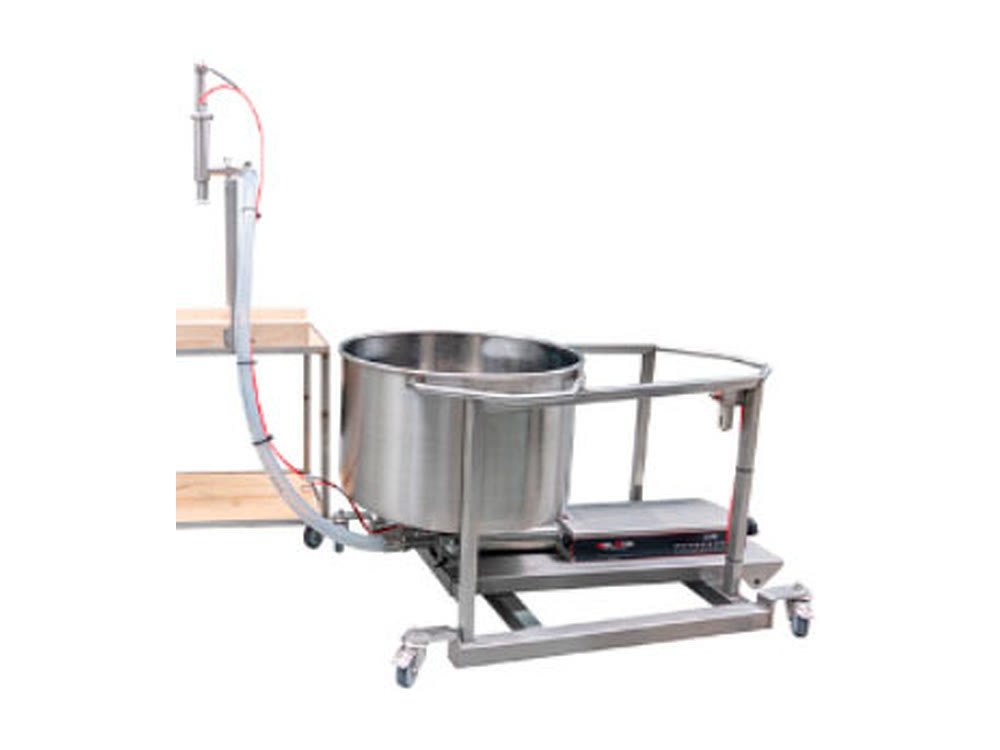

A 220 litre hopper, low body
The largest hopper in the range, on the lowest body. The hopper is filled and cleaned in the low position, so the operator does not have to bend.
- A 220 litre hopper
- A compact frame that is fixed in height
- The hopper can be filled and cleaned in the lowest position
- Air 219 l/min at 30 deposits/min, 7 Bar
- A deposit range of 5-1,340 ml
- Entirely stainless steel
- Hopper
- 220 l
- Deposit
- 5 - 1,340 ml
- Air
- 219 l/min, 7 Bar
- Frame
- compact, fixed
Tell us your product, the portion volume and where on the line the machine will stand, and we will choose the frame for it.

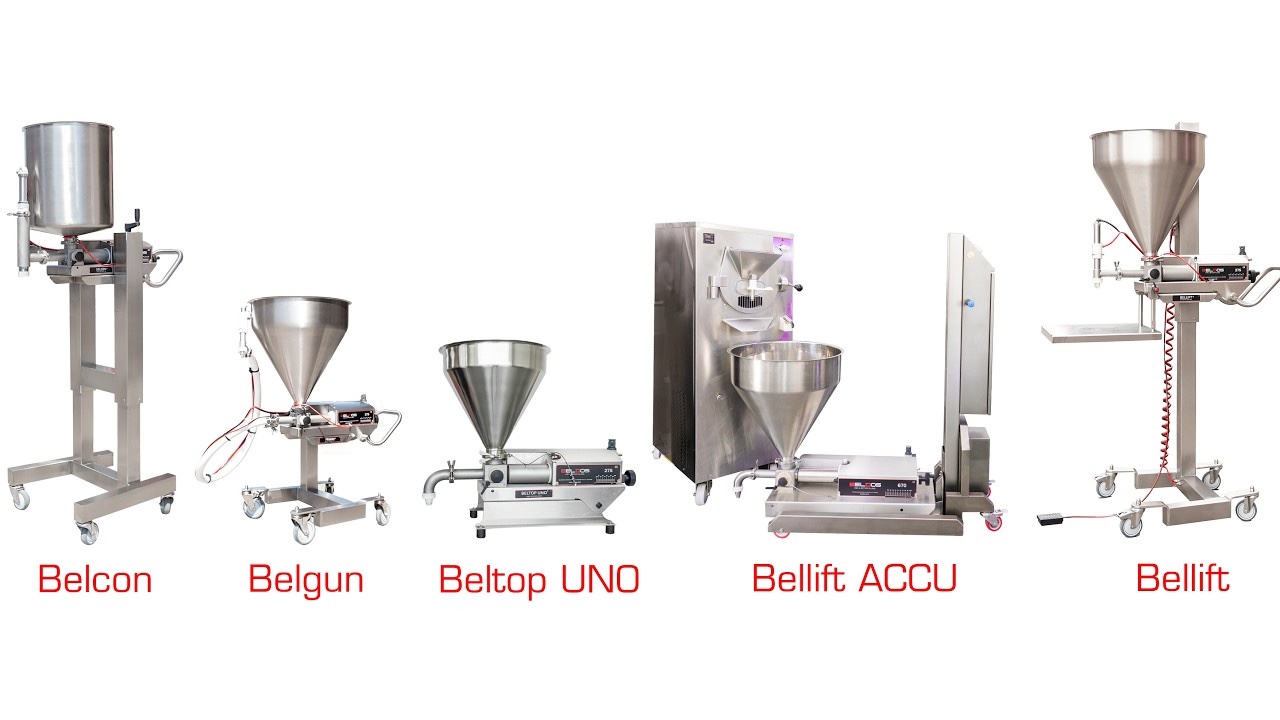

The same unit, different frames
The dosing unit does not change. Which frame suits depends on where the machine stands on the line and on how the operator works.
Describe the layout of your line and how the operator works, and we will pick the frame for it.
