Silos and Storage
Not all silos are suitable for all types of storage. Are you storing liquids, or raw materials in powder form? Do you have plenty of space, or is space limited? Royal Kaak has silos for every form of storage: stainless steel storage silos and tanks, polyester silos, big bag unloading stations and sackcloth silos.
Kaak is unusual in combining technical maintenance with cleaning. The technician who cleans sees where maintenance is needed and carries it out immediately. One specialist does both jobs, so there is no need for several trips to the same site, and your production stops for the shortest possible time.
- Big bag silo
- 1,900 - 6,000 litres
- Bagged goods cabinet
- 200 - 500 litres
- Finish
- 2B, welded inside and out
- The stainless steel storage silo is welded on the inside as well as the outside
- The welds on the interior are acid-etched and passivated
- The exterior welds are also brushed, leaving tight brush marks along the weld
- Scratch resistant, high strength, hygienic, highly resistant to corrosion and oxidation
- Maintenance and cleaning are carried out by the same specialist, which shortens downtime
Forms of storage
Are you storing powder or liquid, and is space plentiful or limited?

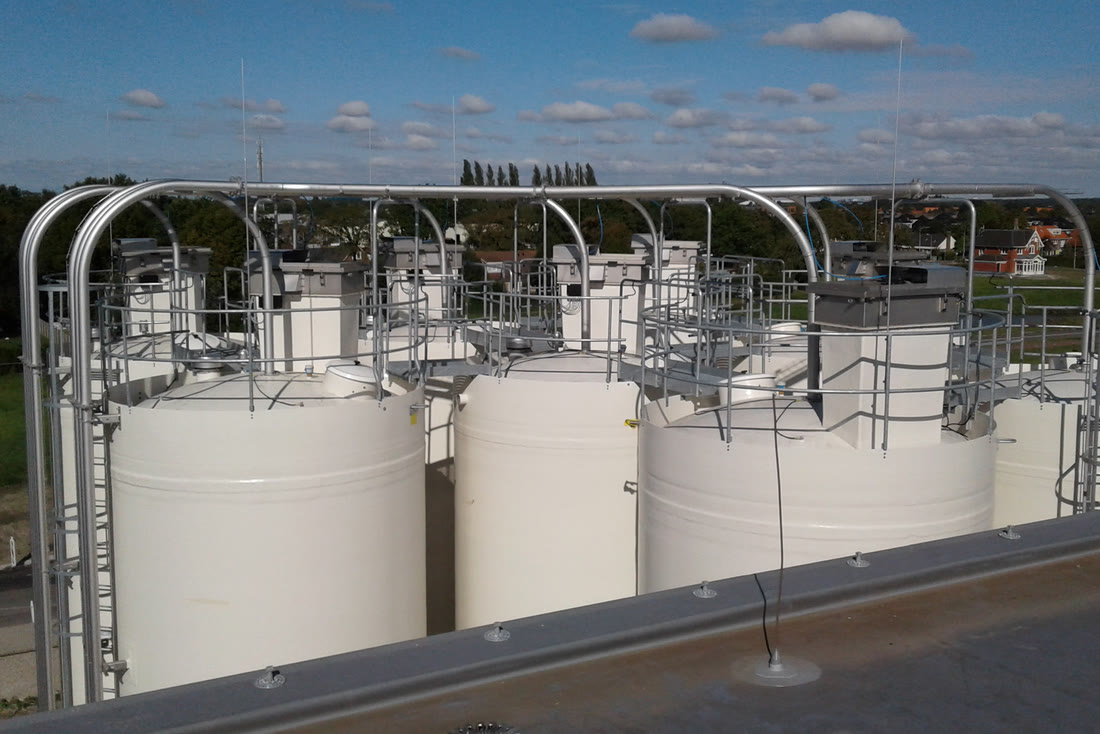

Outdoor storage silo
Hard inside and out. That may sound logical, but it is not self-evident. With the right equipment, high-end silos are provided that are worth the investment.
- A 2B finish layer makes the silo scratch resistant, very strong and hygienic
- High resistance to corrosion and oxidation, and a long lifespan
- The silo is welded inside and out to ensure that quality
- The standard is kept high because these silos are used in the bakery industry
- Finish
- 2B finish layer
- Welding
- inside and out
- Use
- outdoor

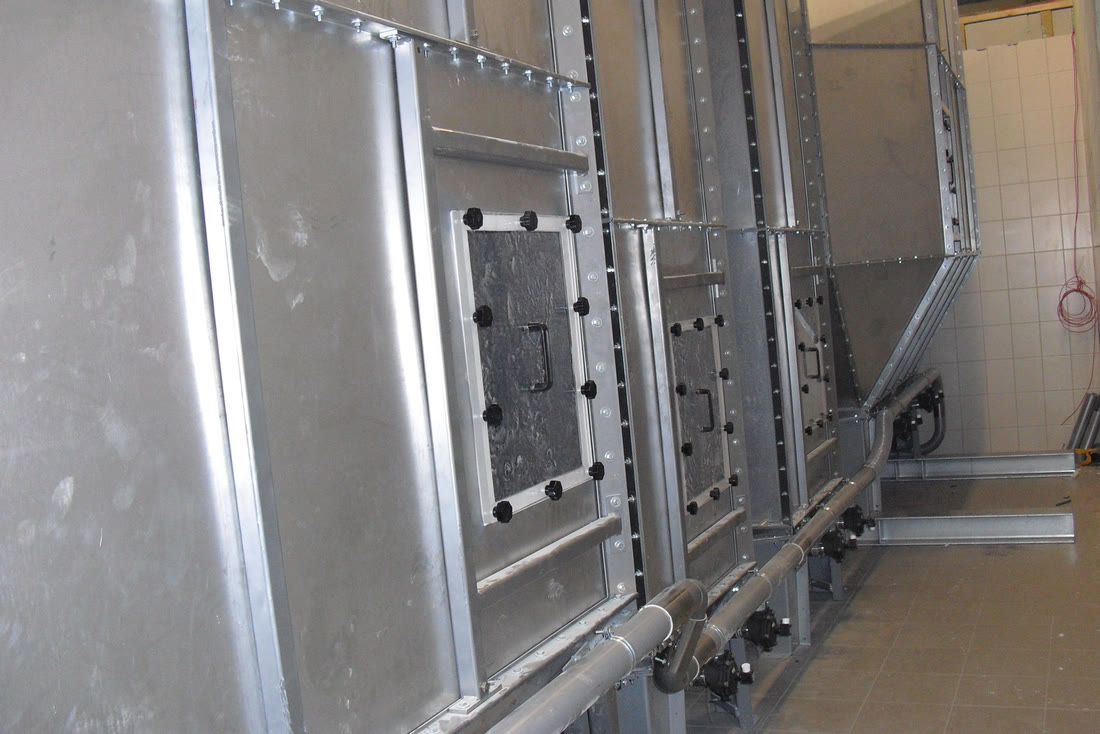

Silbox modular flour silo
The square and rectangular shape and the modular construction of the Silbox silo make it ideal for installation in confined spaces. Kaak can supply and install them quickly.
- A square and rectangular shape that fits into corners and along walls
- A modular build that adapts to the space you have
- Quick supply and installation
- Shape
- square and rectangular
- Build
- modular
- Suits
- confined space

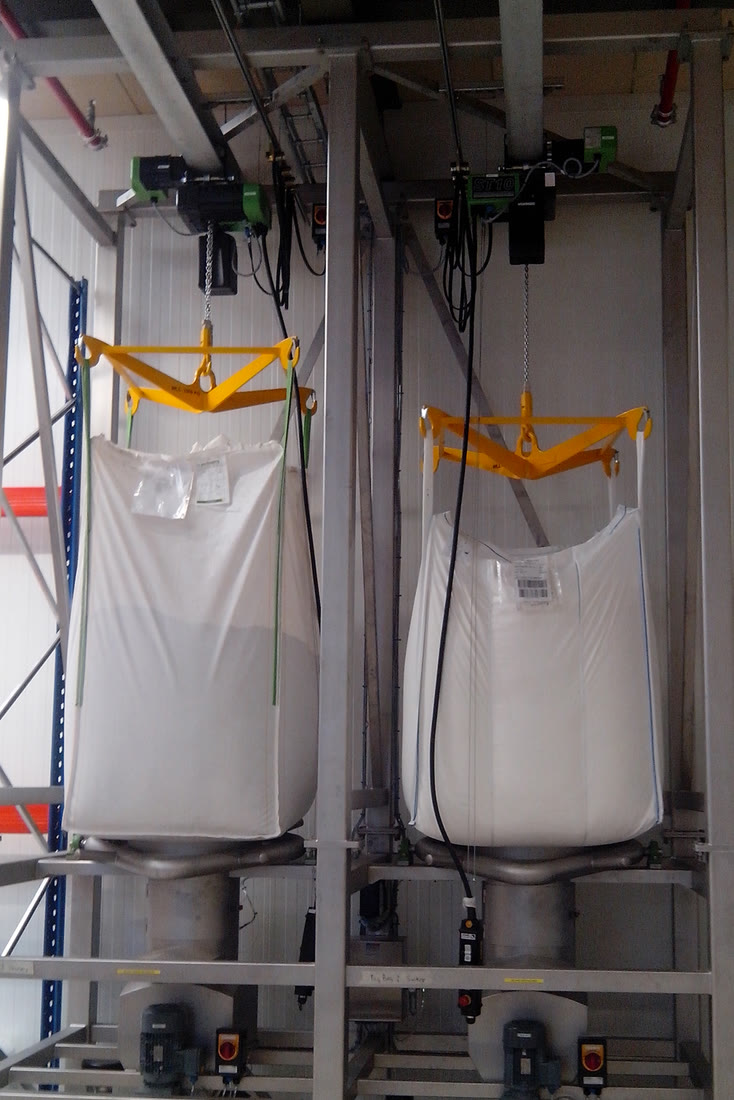

Big bag storage and unloading
For storing big bag raw materials a big bag silo is supplied, into which the entire contents can be poured. Matching the silo contents of 1,900 to 6,000 litres to the daily requirement means supply can be done during the day shift, reducing the number of full-time employees required.
- Supply is carried out by means of a big-bag hoist
- Where height is limited, an unloading station with connected plug conveying is used
- Depending on product properties and installation options, the big bag contents can serve as stock themselves
- For bagged raw materials a bagged goods cabinet of 200 to 500 litres is supplied
- In both cases the INO discharge system handles the dosing
- Big bag silo
- 1,900 - 6,000 litres
- Bagged goods cabinet
- 200 - 500 litres
- Supply
- hoist or unloading station

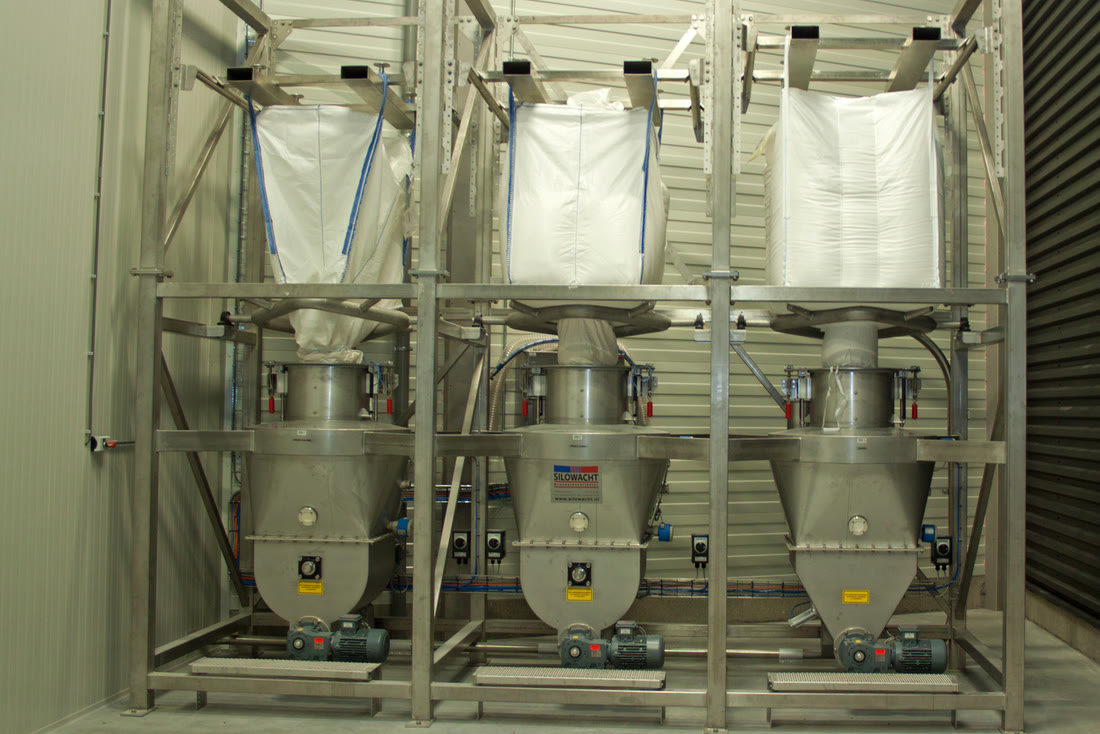

INO discharge system
The INO discharge system ensures that products can be dosed from the silos safely and accurately. The same system works on the big bag silos and on the bagged goods cabinet.
- Safe discharge from the silo
- Accurate dosing
- Used on both the big bag silo and the bagged goods cabinet
- Function
- dosing from the silo
- Used on
- big bag silo and bagged goods cabinet

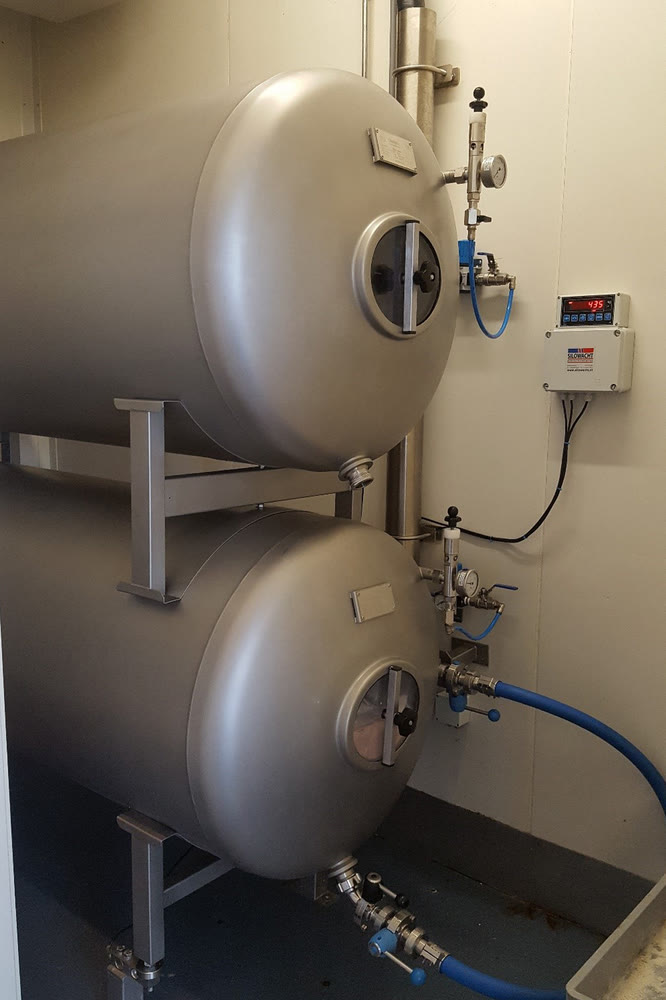

Stainless steel liquid storage tanks
Stainless steel storage tanks are produced for liquid products such as yeast, desem, syrups, jelly and brine. They are manufactured from high-quality stainless steel and are especially suitable for the food industry.
- Yeast, desem, syrups, jelly and brine
- Depending on the product specification they can be double-walled, traced and insulated
- The tank is heated or cooled to the dosage temperature the process requires
- Contents
- yeast · desem · syrup · jelly · brine
- Body
- high-quality stainless steel
- Temperature
- heated or cooled
The universal liquid BVM installation
The universal liquid BVM installation doses grease and water based enhancing agents. The ingredients are delivered in containers, which can be set up in the raw materials warehouse.
- Enhancing agents with a static viscosity from 0.11 to 3
- Applicable at ambient temperatures from 15 to 30 °C
- The density is around 1.0 kg/dm³
- CIP cleanable: designed so an external CIP installation can be connected, with components suitable for CIP cleaning
- Because proteins are handled they leave a biofilm on components and pipes; research has shown CIP cleaning is necessary
- A total of five products can be dosed on three bread lines
- An automatic switch-over unit connects the pump to a full container when one runs empty
- Viscosity
- static 0.11 - 3
- Temperature
- 15 - 30 °C
- Density
- around 1.0 kg/dm³
- Cleaning
- CIP
Tell us what you will store, your daily requirement and the space you can give it, and we will pick the silo type and volume for it.
