Planetary Mixers
Built so bakers and food manufacturers can reach precise aeration, emulsion, creaming and whipping in production. The column or bridge models can work under vacuum or pressure.
Ingredient automation, short draining times, heating and cooling, and cleaning in place are among the other features. Manufacturers have to master increasingly elaborate and varied processes, and the Ultimix range answers that.
Below it sits Phebus: 80 to 200 litres, a heavy duty body with a bowl on castors and a drain plug at the bottom. Ultimix takes over at 200 litres.
- Volume
- 80 – 600 litres
- Mixing
- double tool and scraper
- Bodies
- Phebus and Ultimix
- Versions
- Access and Premium
- Volume: from 80 litres on Phebus to 600 on Ultimix
- Double tool and scraper for best-in-class mixing quality
- A patented, extra-flat gearbox for full hygiene and minimal footprint
- Mixing quality is incomparable thanks to an adjustment of the tool speed to satellite speed ratio
- Repeatability and scalability of production, whatever the batch or process
Phebus and Ultimix
Is recipe control enough, or do you also need vacuum and CIP?

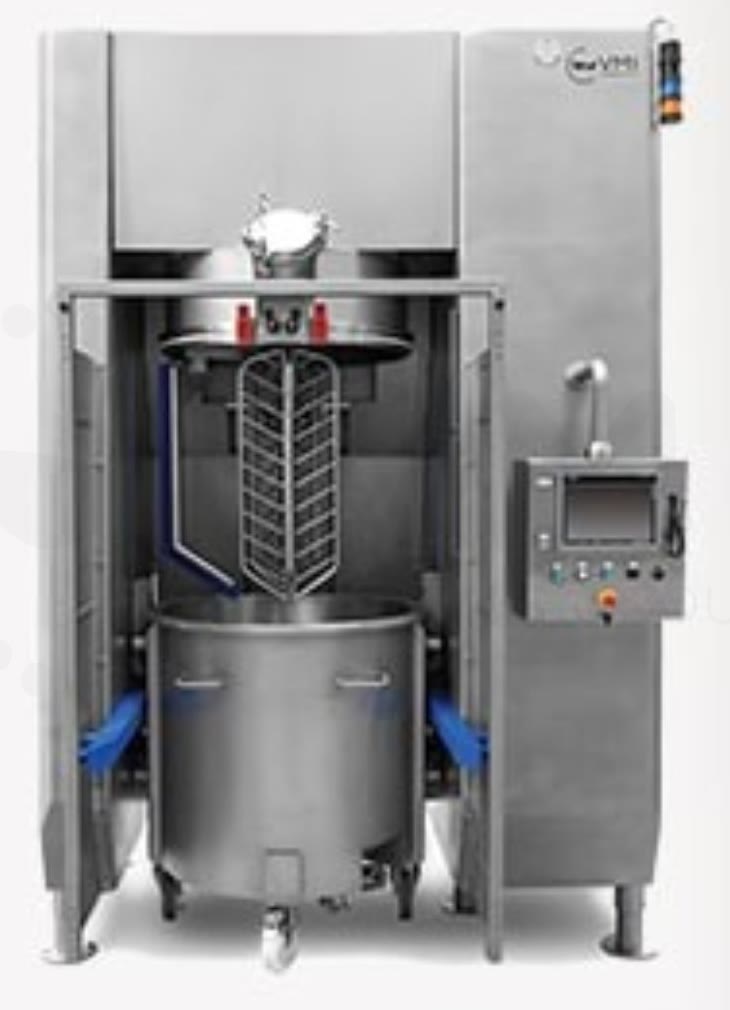

Ultimix planetary mixer
The range, from 200 to 600 litres, is built for increasingly elaborate processes. Its tank capacity allows large quantities of a wide variety of products.
- Versatility in applications: it handles a wide range of viscosities thanks to interchangeable tools
- High productivity: programmed cycles, automated integration of ingredients
- It can be integrated into robotic planetary mixing systems
- Better cleaning, with no retention zones and an all stainless steel design
- Easy maintenance: quick access to parts and components
- Volume
- 200 – 600 litres
- Tools
- interchangeable
- Body
- all stainless steel
Access version
The Access version features an intuitive Digy interface that allows easy control of recipe parameters. Optional automation enables precise management of ingredient dosing.
- Recipe parameters are controlled through the Digy interface
- Optional automation gives precise management of ingredient dosing
- Programmed cycles
- Interface
- Digy
- Dosing
- optional automation

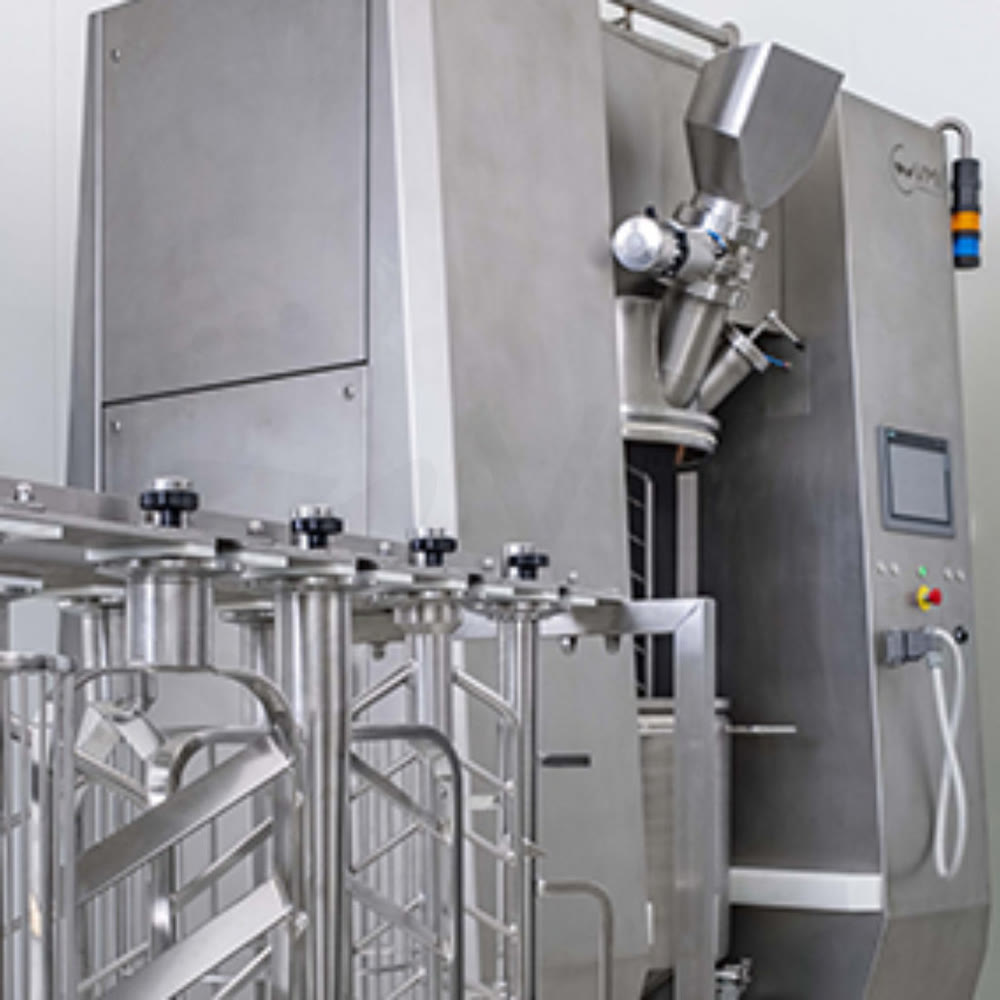

Premium version
The Premium version offers a wide range of advanced options, including vacuum and pressure control during processing, as well as clean-in-place capability.
- Vacuum and pressure control during processing
- Cleaning in place (CIP)
- Heating and cooling
- Short draining times
- Process
- vacuum and pressure control
- Cleaning
- CIP
- Temperature
- heating and cooling

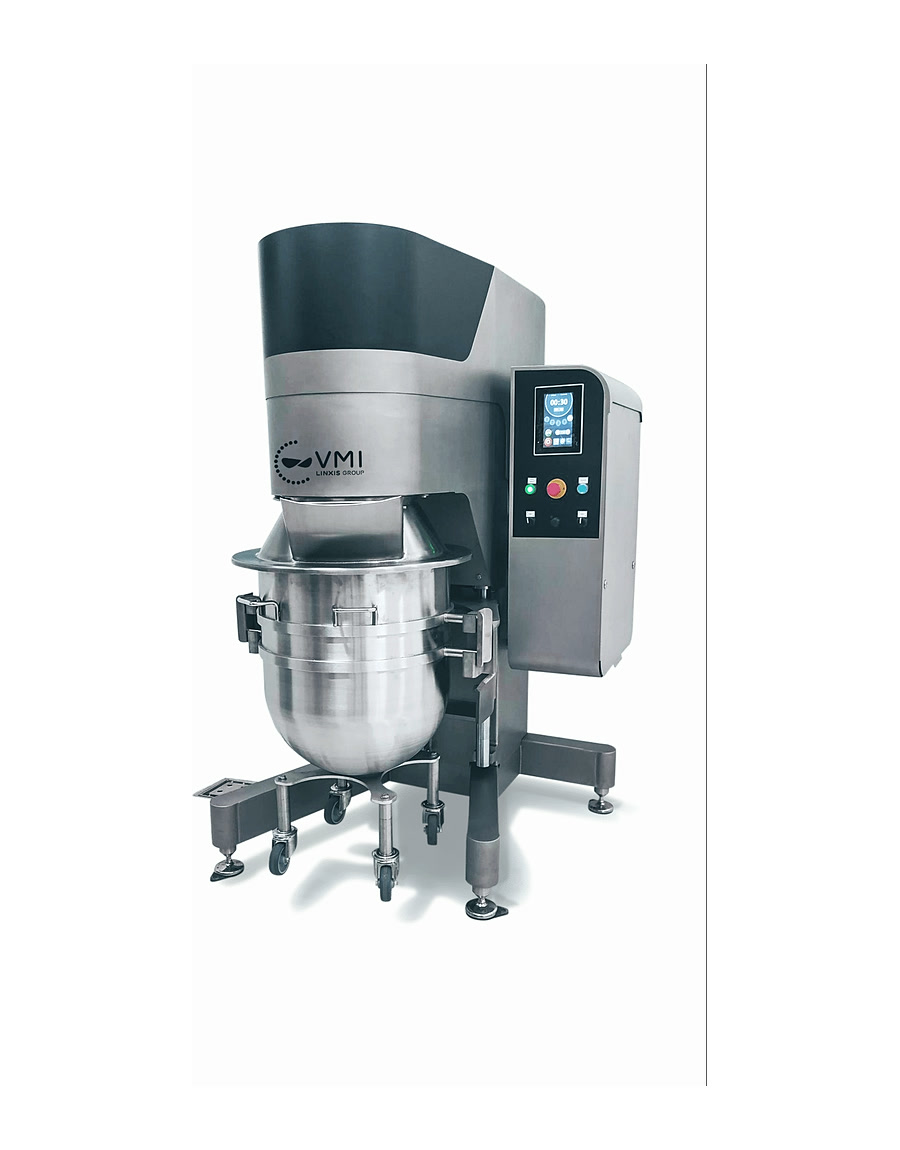

Eighty litres to two hundred
A heavy duty planetary mixer in four bowl volumes: 80, 100, 150 and 200 litres. The bowl runs on castors with a flush drain plug at the bottom, and the machine detects and locks it by itself. Cookie dough, bread, batters and creams all run in the same body.
- Bowl volumes of 80, 100, 150 and 200 litres
- A Digy touch interface with five adjustable tool speeds
- 100 recipes of 20 phases each
- Automatic bowl detection, mounting and locking
- A stainless bowl on castors with a flush drain plug at the bottom
- Stainless paddle and scraper as standard, spiral and whisk as options
- Tool changes through a quick attachment system
- A grid with a hatch for adding ingredients while mixing
- Assisted and secure raising and lowering of the head
- Asymmetric feet that keep the workspace clear
- 7.5 kW, three phase, IP 54
- Volumes
- 80, 100, 150 and 200 litres
- Power
- 7.5 kW
- Interface
- Digy touch
- Bowl
- on castors, drained from the bottom

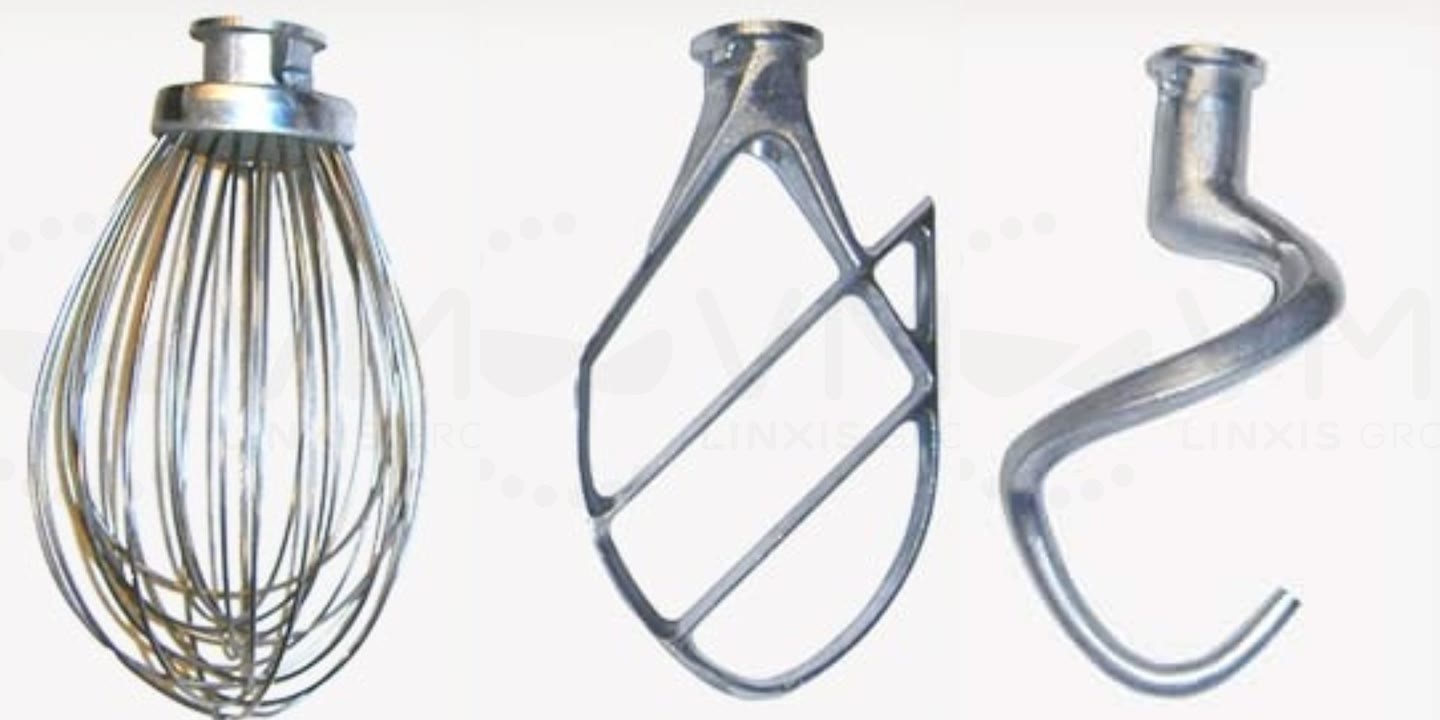

Interchangeable tools
Whisk, paddle and spiral hook: VMI's standard planetary tools. Because the tool is changed, one bowl covers a wide range of viscosities. The double tool and scraper arrangement is where the mixing quality comes from, and the ratio of tool speed to satellite speed is set to the product.
- Whisk: aeration and whipping
- Paddle: creaming and emulsion
- Spiral hook: dense doughs
- Double tool and scraper
- The tool speed to satellite speed ratio is adjustable
- A patented extra-flat gearbox, no retention zones
- Standard tools
- whisk · paddle · spiral hook
- Gearbox
- patented, extra-flat
Tell us the product and the batch size, and we will pick the volume and version for it.
